Productomschrijving

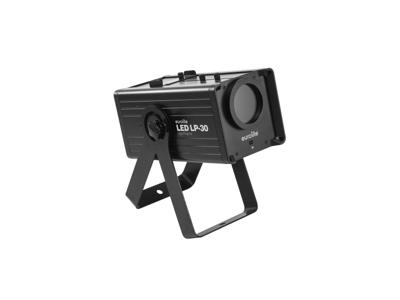

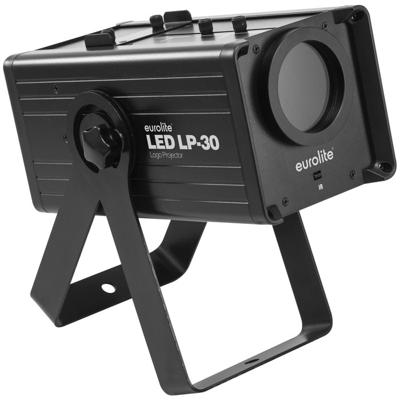

LED logo projector with 30 W LED incl. IR remote controlUse the EUROLITE LED LP-30 to advertise your booth with your company logo projected on the ceiling or throw a Christmas motif directly from your shop window onto the street to attract the full attention of passers-by. The LP-30 logo projector is completely silent as it is equipped with convection cooling. The sharp and flicker-free projection is made possible by the powerful, cool white 30-watt COB LED. Different gobos can be easily changed and inserted. Switch conveniently between static or rotating gobos and control the rotation speed and direction according to your needs. A gobo with "bubbles" motif is included in the delivery.The logo projector also features a dimmer, pre-programmed macros and a variable speed strobe effect with a random generator. You can control the projector either via DMX, master/slave or with the included infrared remote control. The logo projector is also compatible with QuickDMX - the wireless DMX system from Eurolite. The P-Con mains connection allows you to operate up to eight devices in series. You can address and set the LP-30 via the control board with LCD display.
LED logo projector with 30 W LED, strobe, dimmer and gobo rotation, incl. IR remote control
- Delivery includes a gobo, motive "bubbles"
- Clear projection
- 1 powerful LED 30 W COB (chip-on-board) cold white (CW)
- Gobo wheel with rotating gobos; focus manual; zoom manual; gobo wheel with static gobos
- Gobo effect; strobe effect
- The device is cooled by passive convection cooling
- Control via DMX; IR remote control; stand-alone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With a beam angle of 11° - 16°
- With double bracket
- For application areas such as: Clubs/dancing school; wedding/gala/events; mobile djs / entertainer; restaurants, bars and hotels
- Silent operation
- Dimmer electronic; color macros adjustable
- Preprogrammed in Light Captain; Light´J
- Mains input and output for power linking up to 8 units
- Application possibility: Standing; suspended; on stand
gobos
Package contents
- 1 x device, 1 x power cord, 1 x remote control, 1 x battery, 1 x gobos, 1 x user manual
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 35 W |
| IP classification: | IP20 |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Lamp type: | LED lamp |
| LED type: | 1 x 30 W COB (chip-on-board) cold white (CW) |
| Equipment: | Gobo wheel with rotating gobos; focus manual; zoom manual; gobo wheel with static gobos |
| DMX channels: | 2; 3; 4 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Passive convection cooling |
| Control: | DMX; IR remote control; stand-alone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: | Light Captain; Light´J |
| Projection: | Flicker-free |
| Beam angle: | 11° - 16° |
| Beam angle (1/2 peak): | 11 - 16° |
| Beam angle (1/10 peak): | 11 - 16° |
| Housing color: | Black |
| Attachment system: | Double bracket |
| Material: | Aluminum |
| Dimensions: | Length: 25,2 cm
Width: 12 cm
Height: 24,8 cm |
| Weight: | 3,34 kg |
| Noise classification: | Class 0 (no noise at all) |
| Mounting bracket |
| Diameter mounting holes: | 2 x Ã10mm |
| Material: | Metal, 2,5 mm |
| Power cord |
| Cable length: | Approx. 1,2 m |
| Remote control |
| Battery: | 1 x button cell 3.0 V CR2032 lithium manganese built-in |
| Gobos |
| Gobos: | Outside diameter 27mm
Image diameter 18mm
Gobos changeable |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
