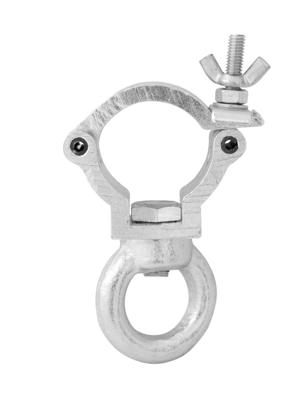

Eurolite EUROLITE DEC-30E Eye Ring Coupler, silver

Mounting coupler for 50 mm tube with eyelet, maximum load WLL 500 kg

Mounting coupler for 32 - 35 mm tube, maximum load WLL 200 kg

Mounting coupler for 50 mm tube with eyelet, maximum load WLL 800 kg

Mounting coupler for 50 mm tube with eyelet, maximum load WLL 800 kgMaximum load BGV C1 (8-fold):400 kgMaximum load WLL (4-fold):800 kgTube diameter sector:45 - 50 mmMaterial:AluminumColor:SilverDimensions:Length: 16,50 cmWidth: 5 cmDepth: 11,50 cmHeight: 5,50 cmWeight:840 g

Mounting coupler for 50 mm tube with eyelet, maximum load WLL 500 kgMaximum load BGV C1 (8-fold):250 kgMaximum load WLL (4-fold):500 kgTube diameter sector:45 - 50 mmMaterial:AluminumColor:SilverDimensions:Length: 17 cmWidth: 4 cmDepth: 12 cmWeight:600 g

Mounting coupler for 32 - 35 mm tube, maximum load WLL 200 kg

Mounting coupler for 35 mm tube, maximum load WLL 200 kgHook for installing projectors, lighting effects etc. via a truss systemWith countersunk mounting screw M10x35 mmMounting of a half cone M10 is possible since the mounting screw can be turned as required (countersunk head)Maximum load BGV C1 (8-fold):100 kgMaximum load WLL (4-fold):200 kgTube diameter sector:32 - 35 mmMaterial:AluminumColor:SilverMounting screw:M10Dimensions:Length: 5,10 cmWidth: 3,50 cmDepth: 8 cmWeight:200 g
