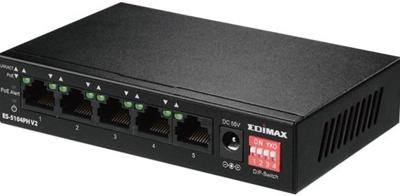

Edimax ES-5104PH V2 Netwerk Schakelaar 10/100 Mbit

0
The Edimax ES-5104PH V2 is a five port Fast Ethernet switch with four PoE+ Ports designed for use in home, small or medium sized network environments. With four DIP switches, PoE ports can be manually set with on/off control, extending PoE delivery distance up to 200 meters and port-based on/off control for VLAN and QoS is also supported. The switc...

Verkopers met dit product

Verkoper
Bezorging
Prijs
Onlinehandelshuis.nl logo
Onlinehandelshuis.nl
Niet Leverbaar
6,95
98,95
Kabelmaxx.nl logo
Kabelmaxx.nl
Niet Leverbaar
6,95
81,95

Anderen bekeken ook

Edimax ES-5104PH V2 Netwerk Schakelaar 10/100 Mbit
Edimax ES-5104PH V2 Netwerk Schakelaar 10/100 Mbit
The Edimax ES-5104PH V2 is a five port Fast Ethernet switch with four PoE+ Ports designed for use in home, small or medium sized network environments. With four DIP switches, PoE ports can be manually set with on/off control, extending PoE delivery distance up to 200 meters and port-based on/off control for VLAN and QoS is also supported. The switch easily connects and supplies power to PoE-enabled devices such as wireless access points, network cameras and IP phones as well as other Ethernet-enabled devices such as computers, printers or network attached storage (NAS). The compact size and fan-less design make the switch an ideal solution for expanding home and small business networks.Power over Ethernet (PoE+) Auto DetectionFeatures four IEEE 802.3at Power over Ethernet (PoE+) ports which supply up to 30 watts of electricity per port. It can convert standard 100?240V AC power into low?voltage 50 - 57V DC electricity to power IEEE 802.3at compliant network accessories via existing LAN…
98,95
Edimax ES-3305P Netwerk Schakelaar 10/100 Mbit 5 Poorten
Edimax ES-3305P Netwerk Schakelaar 10/100 Mbit 5 Poorten
The ES-3305P is a 10/100 Mbps unmanaged Ethernet desktop switch designed to enhance network performance. Its compact, sleek design offers outstanding performance and high efficiency, using store and forward packet-switching technology to provide reliable data transfers, ideal for network connectivity in the SOHO environment.To extend home networks or meet streaming, multimedia transfer and online gaming requirements the ES-3305P is a cost-effective Fast Ethernet solution. The plug-and-play design ensures users can easily connect network devices such as PCs, network-attached storage or print servers to a home network with no manual configuration necessary.Compact Design & Flexible Placement Designed for easy home network extension with desktop and wall-mount installation for flexible placement. Its compact size fits into the home environment and keeps desk space free.Easy to UseThe ES-3305P is plug-and-play and supports a wide range of network protocols. Installation and network managem…
29,95
Edimax ES-3308P Netwerk Schakelaar 10/100 Mbit 8 Poorten
Edimax ES-3308P Netwerk Schakelaar 10/100 Mbit 8 Poorten
De ES-3308P is een 10/100 Mbps onbeheerde desktop switch die ontworpen is om de netwerkprestaties te verbeteren. Het compacte, strakke ontwerp biedt uitstekende prestaties en een hoge efficiëntie dankzij de store-and-forward packet-switching technologie die zorgt voor een betrouwbare gegevensoverdracht die ideaal is voor netwerkverbindingen in een SOHO-omgeving.Voor het uitbreiden van een thuisnetwerk en om tegemoet te komen aan de vereisten voor online gaming, multimedia-overdracht of streaming, is de ES-3308P een betaalbare en effectieve Fast Ethernet oplossing. Het plug-and-play ontwerp maakt het eenvoudig voor gebruikers om netwerkapparaten zoals PC´s, netwerkopslag en printservers aan te sluiten op het thuisnetwerk zonder dat er enige handmatige configuratie vereist is.Ondersteunt Auto-NegotiationAlle poorten van de ES-3308P detecteren automatisch of een aangesloten apparaat werkt op 10Mbps of 100Mbps en half-duplex of full-duplex mode en past de snelheid hierop aan voor een probl…
32,95
Edimax GS-1008P V2 Netwerk Switch Gigabit + Poe
Edimax GS-1008P V2 Netwerk Switch Gigabit + Poe
The Edimax GS-1008P V2 is an Eight PoE+ Port Gigabit switch designed for use in home, small or medium sized network environments. With eight DIP switches, PoE ports can be manually set with on/off control, extending PoE delivery distance up to 200 meters and port-based on/off control for VLAN and QoS is also supported. The switch easily connects and supplies power to PoE-enabled devices such as wireless access points, network cameras and IP phones as well as other Ethernet-enabled devices such as computers, printers or network attached storage (NAS). The compact size and fan-less design make the switch an ideal solution for expanding home and small business networks.Aansluiting: Bedraad, LANAantal LAN-verbindingen: 8Ingang(en): 1x RJ45Kleur: ZwartMateriaal: PlasticNetwerktype: GigabitPoE Ports: 10Type apparaat: SwitchType connector: RJ45Type stekker: EuroUitgang(en): 8x RJ45
292,95
Netwerk Switch 10/100 Mbit
Netwerk Switch 10/100 Mbit
De Edimax ES-5104PH V2 is een Fast Ethernet-switch met vijf poorten en vier PoE+-poorten, ontworpen voor gebruik in thuis-, kleine of middelgrote netwerkomgevingen. Met vier DIP-switches kunnen PoE-poorten handmatig worden ingesteld met aan/uit-bediening, waardoor de PoE-leveringsafstand wordt verlengd tot 200 meter en poortgebaseerde aan/uit-bediening voor VLAN en QoS wordt ook ondersteund. De switch kan eenvoudig worden aangesloten en van stroom worden voorzien voor PoE-compatibele apparaten zoals draadloze toegangspunten, netwerkcamera's en IP-telefoons, evenals andere Ethernet-apparaten zoals computers, printers of Network Attached Storage (NAS). Het compacte formaat en het ventilatorloze ontwerp maken de switch een ideale oplossing voor het uitbreiden van thuis- en kleine bedrijfsnetwerken.Power over Ethernet (PoE+) automatische detectieBeschikt over vier IEEE 802.3at Power over Ethernet (PoE+)-poorten die tot 30 watt elektriciteit per poort leveren. Het kan standaard 100-240 V wi…
81,95
Edimax ES-5500G V3 Netwerk Schakelaar Gigabit 5 Poorten
Edimax ES-5500G V3 Netwerk Schakelaar Gigabit 5 Poorten
De ES-5500G V3 is een onbeheerde 10/100/1000 Mbps Gigabit Desktop switch die ontworpen is om de netwerkprestaties te verbeteren in een compact formaat en biedt uitstekende prestaties en een hoge efficiëntie. De switch gebruikt store and forward pakket-switching technolgie die een betrouwbare gegevensoverdracht biedt. Deze switch is ideaal voor netwerkconnectiviteit voor de SOHO omgeving.De ES-5500G V3 heeft een plastic behuizing en is een betaalbare Gigabit Ethernet oplossing voor gebruikers die op een eenvoudige manier hun thuisnetwerk willen uitbreiden en die in hun online-gaming, multimedia-overdracht en streaming behoeften willen voorzien. Het plug-and-play ontwerp maakt het eenvoudig voor gebruikers om v netwerkapparaten zoals PC´s, netwerkopslag en printservers aan te sluiten op het thuisnetwerk zonder dat er enige handmatige configuratie vereist is.IEEE Energie Efficiënt Ethernet (EEE)De ES-5500G V3 combineert energie-efficiëntie met de Fast Ethernet snelheden die nodig zijn voo…
50,95
Edimax ES-5800G V3 Netwerk Schakelaar Gigabit 8 Poorten
Edimax ES-5800G V3 Netwerk Schakelaar Gigabit 8 Poorten
De ES-5800G V3 is een onbeheerde 10/100/1000 Mbps Gigabit Desktop switch die ontworpen is om de netwerkprestaties te verbeteren in een compact formaat en biedt uitstekende prestaties en een hoge efficiëntie. De switch gebruikt store and forward pakket-switching technolgie die een betrouwbare gegevensoverdracht biedt. Deze switch is ideaal voor netwerkconnectiviteit voor de SOHO omgeving.De ES-5800G V3 heeft een plastic behuizing en is een betaalbare Gigabit Ethernet oplossing voor gebruikers die op een eenvoudige manier hun thuisnetwerk willen uitbreiden en die in hun online-gaming, multimedia-overdracht en streaming behoeften willen voorzien. Het plug-and-play ontwerp maakt het eenvoudig voor gebruikers om v netwerkapparaten zoals PC´s, netwerkopslag en printservers aan te sluiten op het thuisnetwerk zonder dat er enige handmatige configuratie vereist is.IEEE Energie Efficiënt Ethernet (EEE)De ES-5800G V3 combineert energie-efficiëntie met de Fast Ethernet snelheden die nodig zijn voo…
67,95
Edimax USB-C GIGABIT ADAPTER Ethernet 1000 Mbit/s
Edimax USB-C GIGABIT ADAPTER Ethernet 1000 Mbit/s
Simple Yet Blazing FastUSB-C to Gigabit RJ45 Network AdapterPlug the USB Type-C connector into your USB Type-C enabled PC/laptop, for a strong, stable Ethernet cable connection.Lightning-Fast Wired ConnectionObtain stable Gigabit Ethernet connection speeds up to 1000Mbps for gaming, video streaming or large file transfers.Plug-and-Play Reliable ConnectivityMissing Ethernet port? Poor wireless signals? Just simply plug-and-play without driver installtaion and say goodbye to unavailable or unreliable Wi-Fi environments right away. Wide Compatible DevicesCompatible with most of USB-C or or Thunderbolt 3 devices like laptops, computers, tablets, smartphones and Nintendo Switch. Itâs perfect for those devices to connect the wired network devices such as router/AP, NAS and network Switch.Various Supported Operating SystemsNo compatibility restrictions when connecting the EU-4306C with your current smart device system including Windows, Mac OS, Linux OS, Chrome OS, Android OS and Nintendo Swi…
22,95
Edimax GP-101ET Netwerk Switch Gigabit
Edimax GP-101ET Netwerk Switch Gigabit
Power over Ethernet (PoE) is typically limited to a range of 100 meters due to cable capacity. For longer-distance PoE networking though, the GP-101ET PoE+ Extender is the perfect accessory - increasing capacity up to another 100 meters (328 ft). Its a 1-Port Gigabit PoE Extender with plug and play installation requiring neither configuration nor extra electrical power, and makes for an innovative and cost-effective PoE repeater that extends power and data for another 100 meters. Extend your network for a PD (Powered Device) such as WLAN access points, network cameras, IP phones and others, with Gigabit high-speed for greater deployment flexibility. The GP-101ET Extender can be connected to any IEEE 802.3at/af end-nodes such as WLAN access points, network cameras, Voice over IP (VoIP) telephones and IP-based appliances where the IEEE 802.3at/af in-line Power over Ethernet port is supported. Enables the Ethernet cable to carry both data and power beyond the 100 meters limitation for ano…
156,95
Edimax GP-101IT Netwerk Poe Injector Gigabit
Edimax GP-101IT Netwerk Poe Injector Gigabit
The Edimax GP-101IT is a Power over Ethernet injector that not only delivers a cost-effective solution for power distribution, but also provides a seamless way of deployment on the existing LAN infrastructure. With the use of power injectors, DC power of up to 30W and the data that comes from a non-PoE switch or router are merged together and then transmitted to the IEEE 802.3at/af compliant products such as PoE dome cameras through the Ethernet cabling. Hence, preserving your investment in hardware upgrade without the need for buying extra PoE switches.Because of adding the capability of IEEE 802.3at/af Power over Ethernet to a non-PoE Ethernet switch or router, the GP-101IT can directly be connected to any IEEE 802.3at/af end-nodes such as PTZ (Pan, Tilt, Zoom) network cameras, PTZ speed dome, color touch-screen Voice over IP (VoIP) telephones and multi-channel wireless LAN access points where the IEEE 802.3at/af in-line Power over Ethernet port is supported.The Power over Ethernet t…
73,95

Klanten-reviews van Edimax ES-5104PH V2 Netwerk Schakelaar 10/100 Mbit

Er zijn nog geen beoordelingen voor dit productBen jij de eerste die een review plaatst?

Meer over Edimax ES-5104PH V2 Netwerk Schakelaar 10/100 Mbit

Productomschrijving

The Edimax ES-5104PH V2 is a five port Fast Ethernet switch with four PoE+ Ports designed for use in home, small or medium sized network environments. With four DIP switches, PoE ports can be manually set with on/off control, extending PoE delivery distance up to 200 meters and port-based on/off control for VLAN and QoS is also supported. The switch easily connects and supplies power to PoE-enabled devices such as wireless access points, network cameras and IP phones as well as other Ethernet-enabled devices such as computers, printers or network attached storage (NAS). The compact size and fan-less design make the switch an ideal solution for expanding home and small business networks.Power over Ethernet (PoE+) Auto DetectionFeatures four IEEE 802.3at Power over Ethernet (PoE+) ports which supply up to 30 watts of electricity per port. It can convert standard 100?240V AC power into low?voltage 50 - 57V DC electricity to power IEEE 802.3at compliant network accessories via existing LAN cables. With PoE detection capability, the ES-5104PH V2 is able to verify whether the connected device is IEEE 802.3at compliant. In the event that a PoE device is not detected, only network data will be transmitted through the LAN cable - meaning easy setup and management of network devices such as access points and network cameras.CCTV Mode The unique CCTV-mode DIP switch function is ideal for surveillance networking environment. Switching all DIP switches to on enables CCTV mode which gives multi-function PoE + data extension, Port Isolation and QoS on the ES-5104PH V2. When using video surveillance systems for homes, business or institutions, the CCTV mode provides better speeds for multicast viewing and easier installation. Setting all DIP switches back to off quickly changes the ES-5104PH V2 back to normal for general-use data transmission.Power and Data Distance ExtensionThe built-in DIP switch provides extended operation modes on switch 1 & 2. The ES-5104PH V2 operates as a "standard IEEE 802.at/af PoE Switch when DIP switches are off. With switches on, the ES-5104PH V2 operates on a per-port basis at 10Mbps duplex operation but can support 30-watt PoE power output over a distance of up to 200 meters, overcoming the 100m limit on Ethernet UTP cables. With this brand-new feature, the ES-5104PH V2 provides an additional solution for 802.3at/af PoE distance extension and saves costs of Ethernet cable installation.Innovative Port-based VLAN FeaturesThe ES-5104PH V2 features port-based VLAN where ports can be isolated from each other via DIP switch port 3. This can help to prevent IP cameras multicast or broadcast storms from affecting each other.Hardware QoS for Video & Voice Traffic PrioritySupports 802.1p QoS via DIP switch port 4. This ensures first priority for video and voice traffic.One Uplink PortThe ES-5104PH V2 comes with one uplink port with 100Mbps transfer rate to ensure high-speed data and video transmission, and reliable assurance for connections between surveillance systems and the outside network where the four PoE+ ports can be used to their full potential.High PerformanceThe ES-5104PH switch also supports auto-negotiation and non-blocking wire speed to give you the maximum speed and highest performance possible for each device connected to your network.Plug & Play, No Installation RequiredJust plug Ethernet or PoE enabled devices into the switch. Data and power can be transmitted through existing standard Cat-5e Ethernet cables with no additional cables or configuration required. The ES-5104PH V2 reduces the difficulty, time and cost of network setup.Flexible Network Deployment & Energy EfficientA fast and effective solution when power outlets are unavailable for your network devices. The switch additionally supports IEEE 802.3az Energy Efficient Ethernet which allows for less power consumption and reduced costs during periods of low data activity. Fan-Less Quiet & Compact DesignA fan-less design ensures quiet operation and enables an even more compact design, keeping valuable desk space free in home or small office environments.

Productinformatie

    Productspecificaties

    Artikelnummer(s)
    EAN
    4717964701534
    Beheerfuncties
    Quality of Service (QoS)
    Ja
    Poorten & interfaces
    Aantal basis-switching RJ-45 Ethernet-poorten
    5
    Type basis-switching RJ-45 Ethernet-poorten
    Fast Ethernet (10/100)
    Netstekker
    DC-in ingang
    Netwerk
    Netwerkstandaard
    IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
    10G support
    Nee
    Koperen ethernetbekabelingstechnologie
    10BASE-T, 100BASE-TX
    Full duplex
    Ja
    Datastroombeheer
    Ja
    VLAN=ondersteuning
    Ja
    Virtuele LAN-functies
    Port-based VLAN
    Data-uitwisseling
    Switchingcapaciteit
    1 Gbit/s
    MAC-adrestabel
    1000 entries
    Store-and-forward
    Ja
    Packet forwarding rate (100 Mbps)
    148800 pps
    Packet forwarding rate (10 Mbps)
    14880 pps
    Design
    Rack-montage
    Nee
    Kleur van het product
    Zwart
    LED-indicatoren
    Link, Power over Ethernet (PoE), Stroom
    Certificering
    FCC, CE, LVD
    Prestatie
    Buffergrootte
    56 KB
    Plug and play
    Ja
    Energie
    Vermogenstoevoer inclusief
    Ja
    AC-ingangsspanning
    100 - 240 V
    Spanning
    55 V
    Output current
    1,3 A
    Stroomverbruik (typisch)
    3 W
    Power over Ethernet (PoE)
    Power over Ethernet (PoE)
    Ja
    Aantal Power over Ethernet plus (PoE +)-poorten
    4
    Vermogen per poort Power over Ethernet (PoE)
    30 W
    Totaal Power over Ethernet (PoE)-budget
    60 W
    Eisen aan de omgeving
    Bedrijfstemperatuur (T-T)
    0 - 40 °C
    Temperatuur bij opslag
    -40 - 70 °C
    Relatieve vochtigheid in bedrijf (V-V)
    10 - 90 procent
    Luchtvochtigheid bij opslag
    5 - 90 procent
    Gewicht en omvang
    Breedte
    75 mm
    Diepte
    121 mm
    Hoogte
    26 mm
    Gewicht
    240,5 g
    Logistieke gegevens
    Code geharmoniseerd systeem (HS)
    85176990
