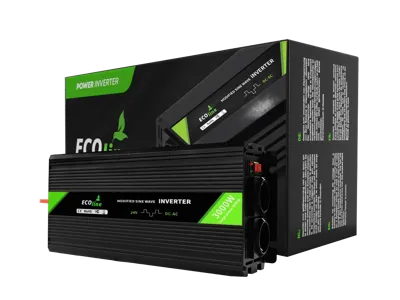

Line inverter 24V to 220V 230V 3000W modified sine wave
The Line inverter 24V to 220V 230V 3000W modified sine wave is a powerful voltage inverter for anyone who wants to use heavier 230 volt devices on a 24 volt installation. It converts 24V direct current into 230 volt alternating current and delivers 3000W continuous power with 6000W peak power, which makes it suitable for among others power tools, household equipment, pumps, lighting and other heavier consumers within this power range.
The modified sine wave is fine for many standard equipment such as power supplies, chargers, lighting, simple motors and many household appliances. For extremely sensitive electronics or equipment with critical motor control a pure sine inverter is a better choice, but for most applications this 3000W inverter offers a powerful and affordable solution. The robust housing, Turbo cooling fan and extensive protections ensure that the inverter continues to operate reliably even under longer loads.
Applications
- 24V to 230V inverter in truck, bus, camper and company vehicle
- voltage inverter for 24V on board systems in sloop, sailing boat and other boats
- mobile workplace in service van for power tools and battery chargers
- power supply for household appliances such as lighting, small kitchen appliances and electronics within the power range
- emergency power and back up in case of power failure
- off grid use in shed, workshop, garden house or tiny house with 24 volt battery installation
Key Features
- modified sine inverter 24V to 220V 230V with 3000W continuous power and 6000W peak power
- suitable for a wide range of devices such as tools, household electronics and chargers
- 2 sockets and 1 USB port 5V 1A and 2,1A for direct connection and charging of equipment
- efficiency 88% for reasonably economical use of battery capacity
- robust housing with LED indication of the status
- cooling with Turbo cooling fan for safe operating temperature at higher loads
- built in protection against overheating, overload, overvoltage and short circuit so that both inverter and connected equipment are protected
Specifications
- Brand: EcoLine
- Product code: EL-INV25
- Type: modified sine voltage inverter
- Input voltage: 24 volt direct current
- Output voltage: 230 volt alternating current
- Output frequency: 50 hertz
- Output waveform: modified sine wave
- Continuous power: 3000 watt
- Peak power: 6000 watt
- Efficiency: 88%
- Idle power consumption: 1,9 ampere
- Housing dimensions: 400 x 180 x 90 millimetre
- Weight: 3,68 kilogram
- Outputs: 2 sockets and 1 USB port 5V 1A and 2,1A
- Indicator: LED diodes
- Protections: protection against overheating, overload, overvoltage and short circuit
- Cooling: cooling with Turbo cooling fan
- Included: connection cables for battery terminals, 8 fuses
- Warranty: 24 months warranty
