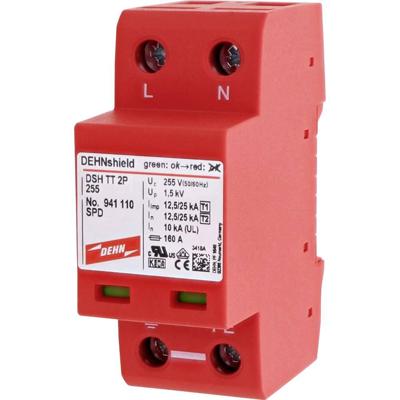

DSH TT 2P 255 - Combination arrester for TT/TN systems, DSH TT 2P 255

0
EAN: 4013364137899 - manufacturer-number: DSHTT2P255 - Combined arrester for power systems System configuration TN, System configuration TT, Number of poles 2, Lightning impulse current (10/350 µs) 25kA, Max. continuous voltage AC 255V, Nominal voltage AC 230V, Voltage protection level 1,5kV, Voltage protection level L-N 1,5kV, Voltage protection l...

Verkopers met dit product

Webshop
Bezorging
Prijs
Eibmarkt.com logo
Eibmarkt.com
16 werkdagen
6,89
265,11

Klanten-reviews van DSH TT 2P 255 - Combination arrester for TT/TN systems, DSH TT 2P 255

Er zijn nog geen beoordelingen voor dit productBen jij de eerste die een review plaatst?

Meer over DSH TT 2P 255 - Combination arrester for TT/TN systems, DSH TT 2P 255

Productomschrijving

EAN: 4013364137899 - manufacturer-number: DSHTT2P255 - Combined arrester for power systems System configuration TN, System configuration TT, Number of poles 2, Lightning impulse current (10/350 µs) 25kA, Max. continuous voltage AC 255V, Nominal voltage AC 230V, Voltage protection level 1,5kV, Voltage protection level L-N 1,5kV, Voltage protection level N-PE 1,5kV, Follow current extinguishing capability 25kA, Specific energy (W/R) 156,25kJ/Ohm, Max. conductor cross section solid (solid, stranded) 35mm², Max. conductor cross section flexible (fine-strand) 25mm², Mounting method DIN rail (top hat rail) 35 mm, Construction size 2 modular spacing, Signalling at the device Optic, Test class Type 1 + 2, Energy-coordinated protection effect with regard to the terminal equipment - DSH TT 2P 255

Productspecificaties

Artikelnummer(s)
EAN
4013364137899
Brand
DEHN
