Meer ABB
Meer ABB in Klussen

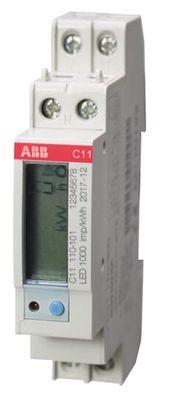

C11 110-101 MID - Direct kilowatt-hour meter 5A C11 110-101 MID

EAN: 7392696035712 - manufacturer-number: C11110-101MID - Direct kilowatt-hour meter 5A Type of meter Electronic, Nominal current (In) 5A, Max. current (Imax) 40A, Nominal voltage (Un) N-L 230 ... 240V, Frequency 50 ... 60Hz, Accuracy class B, Pole type Single phase, Model Direct measurement, Energy type Effective power, Suitable for Purchase, Tari...
67,62

Webshops met dit product

Webshop
Bezorging
Prijs

Anderen bekeken ook

C11 110-301 IEC  - Special kilowatt-hour meter 40A C11 110-301 IEC
C11 110-301 IEC - Special kilowatt-hour meter 40A C11 110-301 IEC
EAN: 7392696035729 - manufacturer-number: C11110-301IEC - Special kilowatt-hour meter 40A Type of meter Electronic, Nominal current (In) 5A, Max. current (Imax) 40A, Nominal voltage (Un) N-L 230 ... 240V, Frequency 50 ... 60Hz, Accuracy class B, Pole type Single phase, Model Direct measurement, Energy type Effective power, Suitable for Purchase, Tariff type One-tariff, Escapement mechanism, Calibrated, Pulse output Electrical, Pulse type S0, Pulse rate 1000 ... 1000Imp/kWh (kvarh), Type of indication Digital, Mounting method DRA (DIN-rail adapter), Width in number of modular spacings 1, Type of interface None, Number of positions total (counter) 6, Degree of protection (IP) IP20 - C11 110-301 IEC
55,62
7M.24.8.230.0110  - Direct kilowatt-hour meter 5A 7M.24.8.230.0110
7M.24.8.230.0110 - Direct kilowatt-hour meter 5A 7M.24.8.230.0110
EAN: 8012823426730 - manufacturer-number: 7M.24.8.230.0110 - Direct kilowatt-hour meter 5A Type of meter Electronic, Nominal current (In) 5A, Max. current (Imax) 40A, Nominal voltage (Un) N-L 230 ... 230V, Frequency 50 ... 60Hz, Accuracy class B, Pole type Single phase, Model Direct measurement, Energy type Effective power, Suitable for Purchase/supply, Tariff type One-tariff, Tariff control External, Measuring type load profile, Calibrated, Approval Measuring Instruments Directive, Pulse output Electrical, Pulse type S0, Pulse rate 1000 ... 1000Imp/kWh (kvarh), Type of indication Digital, Mounting method DRA (DIN-rail adapter), Width in number of modular spacings 1, Type of interface Other, Number of positions total (counter) 7, Degree of protection (IP) IP20, Degree of protection (NEMA) 1 - 7M.24.8.230.0110
83,10
7M.24.8.230.0210  - Direct kilowatt-hour meter 5A 7M.24.8.230.0210
7M.24.8.230.0210 - Direct kilowatt-hour meter 5A 7M.24.8.230.0210
EAN: 8012823426747 - manufacturer-number: 7M.24.8.230.0210 - Direct kilowatt-hour meter 5A Type of meter Electronic, Nominal current (In) 5A, Max. current (Imax) 40A, Nominal voltage (Un) N-L 230 ... 230V, Frequency 50 ... 60Hz, Accuracy class B, Pole type Single phase, Model Direct measurement, Energy type Effective power, Suitable for Purchase/supply, Tariff type One-tariff, Tariff control External, Measuring type load profile, Calibrated, Approval Measuring Instruments Directive, Pulse output Electrical, Pulse type S0, Pulse rate 1000 ... 1000Imp/kWh (kvarh), Type of indication Digital, Mounting method DRA (DIN-rail adapter), Width in number of modular spacings 1, Type of interface Other, Number of positions total (counter) 7, Degree of protection (IP) IP20, Degree of protection (NEMA) 1 - 7M.24.8.230.0210
76,46
DSZ15D-3x80A MID  - Direct kilowatt-hour meter 10A DSZ15D-3x80A MID
DSZ15D-3x80A MID - Direct kilowatt-hour meter 10A DSZ15D-3x80A MID
EAN: 4010312501634 - manufacturer-number: DSZ15D-3x80AMID - Direct kilowatt-hour meter 10A Type of meter Electronic, Nominal current (In) 10A, Max. current (Imax) 80A, Nominal voltage (Un) N-L 230 ... 230V, Nominal voltage (Un) L-L 400 ... 400V, Frequency 50 ... 50Hz, Accuracy class B, Pole type Four conductor, Model Direct measurement, Energy type Effective power, Suitable for Purchase, Tariff type Two-tariff, Tariff control External, Escapement mechanism, Calibrated, Approval Measuring Instruments Directive, Pulse output Optic, Pulse type S0, Pulse rate 1000 ... 1000Imp/kWh (kvarh), Type of indication Digital, Mounting method DRA (DIN-rail adapter), Width in number of modular spacings 4, Type of interface Other, Number of positions total (counter) 7, Degree of protection (IP) IP20 - DSZ15D-3x80A MID
125,35
B23 311-100  - Direct kilowatt-hour meter 5A B23 311-100
B23 311-100 - Direct kilowatt-hour meter 5A B23 311-100
EAN: 7392696001687 - manufacturer-number: B23311-100 - Direct kilowatt-hour meter 5A Type of meter Electronic, Nominal current (In) 5A, Max. current (Imax) 65A, Nominal voltage (Un) N-L 220 ... 240V, Nominal voltage (Un) L-L 380 ... 415V, Frequency 50 ... 60Hz, Accuracy class B, Pole type Four conductor, Model Direct measurement, Energy type Effective power and blind power, Suitable for Purchase/supply, Tariff type Multi-tariff, Tariff control External, Escapement mechanism, Calibrated, Approval Measuring Instruments Directive, Pulse output Electrical, Pulse type S0, Pulse rate 1 ... 999999Imp/kWh (kvarh), Type of indication Digital, Mounting method DRA (DIN-rail adapter), Width in number of modular spacings 4, Type of interface Other, Number of positions total (counter) 7, Degree of protection (IP) IP20 - B23 311-100
242,88
ECP180D  - Direct kilowatt-hour meter 80A ECP180D
ECP180D - Direct kilowatt-hour meter 80A ECP180D
EAN: 3250612231386 - manufacturer-number: ECP180D - Direct kilowatt-hour meter 80A Type of meter Electronic, Nominal current (In) 80A, Max. current (Imax) 80A, Nominal voltage (Un) N-L 92 ... 276V, Frequency 45 ... 65Hz, Accuracy class B, Pole type Single phase, Model Direct measurement, Energy type Effective power and blind power, Suitable for Purchase/supply, Tariff type Two-tariff, Tariff control External, Escapement mechanism, Calibrated, Approval Measuring Instruments Directive, Pulse output Electrical, Pulse type S0, Pulse rate 1 ... 1000Imp/kWh (kvarh), Type of indication Digital, Mounting method DRA (DIN-rail adapter), Width in number of modular spacings 2, Type of interface None, Number of positions total (counter) 9, Degree of protection (IP) IP20 - ECP180D
189,83
A41 412-100  - Direct kilowatt-hour meter 5A A41 412-100
A41 412-100 - Direct kilowatt-hour meter 5A A41 412-100
EAN: 7392696705059 - manufacturer-number: A41412-100 - Direct kilowatt-hour meter 5A Type of meter Electronic, Nominal current (In) 5A, Max. current (Imax) 80A, Nominal voltage (Un) N-L 57,7 ... 288V, Frequency 50 ... 60Hz, Accuracy class B, Pole type Single phase, Model Direct measurement, Energy type Effective power and blind power, Suitable for Purchase/supply, Tariff type Multi-tariff, Tariff control Internal/external, Escapement mechanism, Calibrated, Approval Measuring Instruments Directive, Pulse output Electrical, Pulse type S0, Pulse rate 1 ... 999999Imp/kWh (kvarh), Type of indication Digital, Mounting method DRA (DIN-rail adapter), Width in number of modular spacings 4, Type of interface Modbus, Number of positions total (counter) 7, Degree of protection (IP) IP20 - A41 412-100
436,85
ECP300C  - Transformer kilowatt-hour meter 5A ECP300C
ECP300C - Transformer kilowatt-hour meter 5A ECP300C
EAN: 3250612231393 - manufacturer-number: ECP300C - Transformer kilowatt-hour meter 5A Type of meter Electronic, Nominal current (In) 5A, Max. current (Imax) 6A, Nominal voltage (Un) N-L 92 ... 276V, Nominal voltage (Un) L-L 160 ... 480V, Frequency 45 ... 65Hz, Accuracy class B, Pole type Four conductor, Model Measurement transformer, Energy type Effective power and blind power, Suitable for Purchase/supply, Tariff type Two-tariff, Tariff control External, Escapement mechanism, Calibrated, Approval Measuring Instruments Directive, Pulse output Electrical, Pulse type S0, Pulse rate 1 ... 10000Imp/kWh (kvarh), Type of indication Digital, Mounting method DRA (DIN-rail adapter), Width in number of modular spacings 4, Type of interface None, Number of positions total (counter) 9, Degree of protection (IP) IP20 - ECP300C
244,82
B23 111-100  - Direct kilowatt-hour meter 5A B23 111-100
B23 111-100 - Direct kilowatt-hour meter 5A B23 111-100
EAN: 7392696001632 - manufacturer-number: B23111-100 - Direct kilowatt-hour meter 5A Type of meter Electronic, Nominal current (In) 5A, Max. current (Imax) 65A, Nominal voltage (Un) N-L 220 ... 240V, Nominal voltage (Un) L-L 380 ... 415V, Frequency 50 ... 60Hz, Accuracy class B, Pole type Four conductor, Model Direct measurement, Energy type Effective power, Suitable for Purchase, Tariff type One-tariff, Escapement mechanism, Calibrated, Approval Measuring Instruments Directive, Pulse output Electrical, Pulse type S0, Pulse rate 1 ... 999999Imp/kWh (kvarh), Type of indication Digital, Mounting method DRA (DIN-rail adapter), Width in number of modular spacings 4, Type of interface Other, Number of positions total (counter) 7, Degree of protection (IP) IP20 - B23 111-100
171,78
EcoCount WSD 32  - Direct kilowatt-hour meter 5A EcoCount WSD 32
EcoCount WSD 32 - Direct kilowatt-hour meter 5A EcoCount WSD 32
EAN: 4048652012817 - manufacturer-number: EcoCountWSD32 - Direct kilowatt-hour meter 5A Type of meter Electronic, Nominal current (In) 5A, Max. current (Imax) 32A, Nominal voltage (Un) N-L 230 ... 230V, Frequency 50 ... 50Hz, Accuracy class B, Pole type Single phase, Model Direct measurement, Energy type Effective power, Suitable for Purchase, Tariff type One-tariff, Calibrated, Approval Measuring Instruments Directive, Pulse output Electrical, Pulse type S0, Pulse rate 1000 ... 1000Imp/kWh (kvarh), Type of indication Digital, Mounting method DRA (DIN-rail adapter), Width in number of modular spacings 1, Type of interface None, Number of positions total (counter) 6, Degree of protection (IP) IP20 - EcoCount WSD 32
46,52

Klanten-reviews van C11 110-101 MID - Direct kilowatt-hour meter 5A C11 110-101 MID

Er zijn nog geen beoordelingen voor dit productBen jij de eerste die een review plaatst?

Meer over C11 110-101 MID - Direct kilowatt-hour meter 5A C11 110-101 MID

Productomschrijving

EAN: 7392696035712 - manufacturer-number: C11110-101MID - Direct kilowatt-hour meter 5A Type of meter Electronic, Nominal current (In) 5A, Max. current (Imax) 40A, Nominal voltage (Un) N-L 230 ... 240V, Frequency 50 ... 60Hz, Accuracy class B, Pole type Single phase, Model Direct measurement, Energy type Effective power, Suitable for Purchase, Tariff type One-tariff, Escapement mechanism, Calibrated, Pulse output Electrical, Pulse type S0, Pulse rate 1000 ... 1000Imp/kWh (kvarh), Type of indication Digital, Mounting method DRA (DIN-rail adapter), Width in number of modular spacings 1, Type of interface None, Number of positions total (counter) 6, Degree of protection (IP) IP20 - C11 110-101 MID

Productspecificaties

Artikelnummer(s)
EAN
7392696035712
Brand
ABB
Kenmerken
Soort
Elektronisch
Kleur van het product
Zwart
Internationale veiligheidscode (IP)
IP20
Energie
Nominale netspanning
5 A
AC-ingangsfrequentie
50 / 60 Hz
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
-25 - 70 °C
Gewicht en omvang
Breedte
17,5 mm
Diepte
65 mm
Hoogte
26,5 mm
Gewicht
66 g
Gewicht verpakking
123 g
Diepte verpakking
117 mm
Breedte verpakking
32 mm
Hoogte verpakking
84 mm
Technische details
Naleving van duurzaamheid
Ja
Duurzaamheidscertificaten
CE, RoHS, WEEE
Logistieke gegevens
Land van herkomst
Italië
