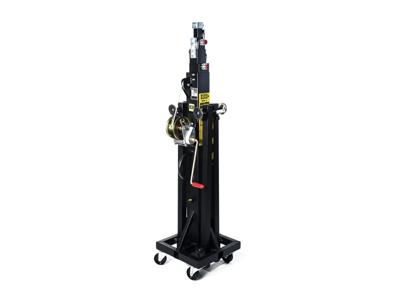

BLOCK AND BLOCK BETA-70

Truss lifter 230kg 6.5m

Truss lifter 160kg 5.3m

Truss lifter 150kg 4.7m

Truss lifter 300kg 6.2m

Truss lifter 270kg 7.6m

Truss lifter 120kg 5m

Truss lifter 220kg 5m

Truss lifter 120kg 4m

max load 300kg - max hoogte 6.6 meter

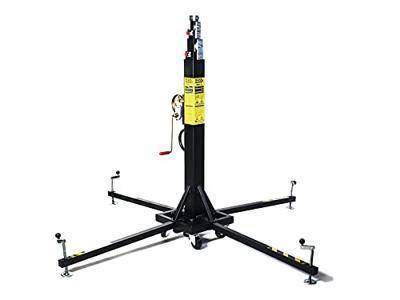

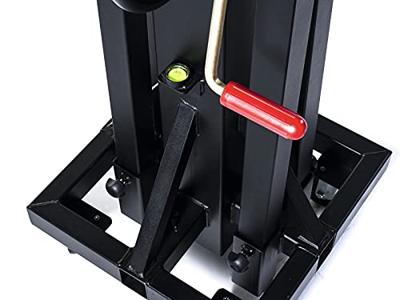

High-quality truss lift for loads up to 150 kg, made in EUFour-part telescopic ground supportSafety bolts to lock the different sections at different heightsLocking bolts in the base area to lock the boomsBooms with adjustable spindle and steel plate with non-slip rubber baseCorrosion protection through epoxy coatingWater level to ensure a vertical positionEarthing connectionTransport rolls to move the lift when retractedAL-KO 351 PLUS winch: Maximum load 350 kg with automatic holding brake. CE declaration of conformity in compliance with the harmonized standards DIN EN 13157, EN 12100 I and II, EC Machinery Directive 2006/42/CEGalvanized steel ropes 6x19+1, manufactured in compliance with the standard 13414-1:2004, tensile strength 1770N/mm2Material: Carbon steel S-275-J0H, manufactured in compliance with the standards EN10219 and EN10305.5Adjustable heightMade in EuropeWith BGV-C1 test certificateMaximum carrying capacity:150 kgMinimum load:25 kgNominal tensile strenght of rope:1770 …
