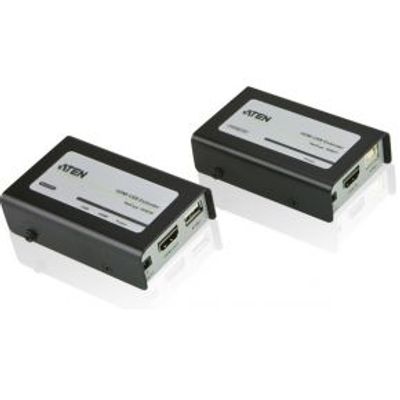

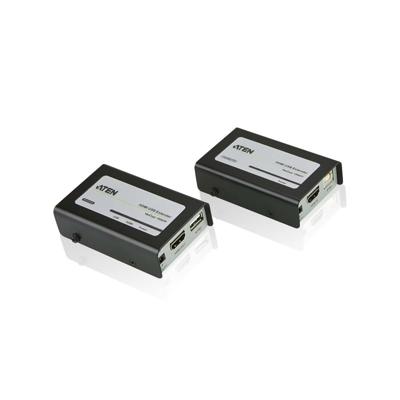

ATEN HDMI USB Extender

0
Extends HDMI signal up to 60 m at 1080i, 40 m in full HD (1080p)Uses two Cat 5e/6 cables to connect the local and the remote unitsSupports USB touch panel8 segment equalization adjustment switch optimizes display qualitySupport Dolby True HD and DTS HD Master AudioBuilt-in 8KV/15KV ESD protectionSupports all USB 2.0 full speed deviceSupports wide s...

Verkopers met dit product

Verkoper
Bezorging
Prijs
Megekko NL logo
Megekko NL
1
gratis
95,95
Conrad NL logo
Conrad NL
16-20 werkdagen
gratis
159,99
Toolmax.nl logo
Toolmax.nl
1
gratis
197,31
Kabelmaxx.nl logo
Kabelmaxx.nl
1 dag
6,95
226,95
Onlinehandelshuis.nl logo
Onlinehandelshuis.nl
Niet Leverbaar
6,95
262,95

Anderen bekeken ook

Aten At-ve150a Vga Video Extender
Aten At-ve150a Vga Video Extender
This video extender comprises a local transmitting unit and a remote receiving unit which are connected by standard Cat 5 cables. The distance of both units can be extended up to 150m. It is ideal for factories and construction sites, or any location where the display may need to expose in a risky setting, but you want the system to be kept in a safe location.Uses Cat 5e cable to connect the local and remote units. Supports a local and a remote display. Adjustable gain control - manually adjust signal strength to compensate for distance Superior video quality - up to 1920x1200 (30 m);1600x1200 (100 m); 1280x1024 (150 m) Supports VGA, XGA, SVGA, UXGA, WUXGA, and multisync monitorsSupports wide screen formats Supports hot-plugging Built-in 8KV/15KV ESD protection Supports DDC for the local monitor Easy installation Rack Mountable
293,95
Aten HDMI EDID Emulator
Aten HDMI EDID Emulator
Stores and emulates the EDID of a screen, so that reliable availability of the EDID is permanently ensured for a HDMI signal sourceSuperior video quality â" HDTV resolutions of 480i, 480p, 720i, 720p, 1080i, 1080p (1920 x 1080); VGA, SVGA, XGA, SXGA, UXGA and WUXGA (1920 x 1200)EDID Wizard: allows a user an easy way to manage EDID settingsConsumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote controlEDID mode selection: Default, Learning , Programming HDMI (3D, Deep Color), HDCP compatibleSupports Dolby True HD and DTS HD Master AudioAutomatically manages EDID communication between connected devicesSignaling rates up to 2.25 Gbits in support of 1080p display LED indication of video source devicesSupports wide screenSupports hot-pluggingNon-Powered ** If the video source is not receiving enough power an external power cord should be connected- EAN: 4710423779259 - Vendorcode: VC080-AT
91,95
ATEN 2 x 2-Poorts HDMI Matrix Zwart
ATEN 2 x 2-Poorts HDMI Matrix Zwart
The VM0202H is a 2 X 2 HDMI Matrix Switch that meets HDMI Specification features including 3D, Deep Color up to 12- bit, and data rates up to 10.2 Gbps. Engineered for the future trend of high-definition video switching, the VM0202H supports computer and video signals at resolutions up to 4K.The VM0202H matrix switch provides high performance routing of 2 HDMI video sources such as HD camcorders, satellite boxes, HD-DVD players, high-definition Blue- ray players, home theater PCs and stand-alone streaming media players to any 2 HDMI displays. The remote control and convenient front panel pushbuttons allow you to efficiently cycle through HDMI source devices and displays, while the front panel LEDs indicate the source device for each display at a glance.- EAN: 4719264645501 - Vendorcode: VM0202H-AT-G
239,-
ATEN 8-poorts HDMI schakelaar
ATEN 8-poorts HDMI schakelaar
With more and more HDMI devices entering the Home Theater market, the need for simultaneous access to different HDMI A/V sources is becoming increasingly important. Now, the VS0801H 8-port HDMI Switch offers an easy and affordable way to add HDMI capabilities to your home theater system by allowing you to switch easily between up to eight HDMI A/V sources (such as an HD camcorder or satellite box, HD-DVD player, hi-def Blu-ray player, home theater PC, stand-alone streaming media player, gaming console, etc.) that are connected to your HDMI display.The remote control and convenient front panel pushbuttons allow you to quickly and easily toggle between HDMI sources, while the front panel LEDs indicate the source device at a glance. Furthermore, for complete system and install integration, RS-232 control is standard through the VS0801H's built-in bi-directional RS-232 serial remote port that allows the switch to be controlled through a high-end controller, PC, and/or home automation/home …
164,95
ATEN VE849T AV-receiver Zwart
ATEN VE849T AV-receiver Zwart
The VE849T Multicast HDMI Wireless Transmitter allows you to position HDMI displays up to 30m* away from HDMI sources when used in unison with up to 4 VE849R receivers. Easily connect two HDMI source devices, a local HDTV and up to four receivers (connected to remote HDTVs) wirelessly, while ensuring crystal clear image quality (Full 1080p), 5.1 channel Dolby digital audio and 3D technology. The IR remote control allows you to switch between HDMI source devices remotely from the receiver side, making watching up to one local and four wirelessly connected HDTVs simultaneously a breeze!The VE849T can be used as: ⢠A wireless 2-port HDMI switch to connect and consolidate remote devices (such as Blu-ray and media players), giving you a complete wireless home cinema. ⢠An ideal addition to meeting rooms, allowing you to share presentations and video conferences to up to four different locations up to 30m* away.⢠A part of your digital signage architecture, for example when broadcasting p…
459,-
ATEN VE811R AV-receiver Zwart audio/video extender
ATEN VE811R AV-receiver Zwart audio/video extender
The ATEN VE811 HDMI HDBaseT Extender guarantees the optimum HDMI connection up to 100 meter over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. The VE811 meets HDMI Specifi cation features including 3D, Deep Color, HD lossless audio formats and CEC passthrough. It supports Dolby Digital 5.1, DTS HD audio and video signals at resolutions up to 4K. In addition, the VE811 supports long reach mode, providing an effective means for extending HDMI signals up to 150 meter over a single Cat 5e/6 cable. Pushing the technology and design to the limit, the compact design makes the VE811 easy to mount in any location. Engineered for todayâs digital trends, the VE811 is ideal for meeting rooms, or any setting that requires high quality HDMI video to be extended for great distances.- EAN: 4719264645761 - Vendorcode: VE811R-AT-G
249,-
ATEN VE811T AV transmitter Zwart audio/video extender
ATEN VE811T AV transmitter Zwart audio/video extender
The ATEN VE811 HDMI HDBaseT Extender guarantees the optimum HDMI connection up to 100 meter over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. The VE811 meets HDMI Specifi cation features including 3D, Deep Color, HD lossless audio formats and CEC passthrough. It supports Dolby Digital 5.1, DTS HD audio and video signals at resolutions up to 4K. In addition, the VE811 supports long reach mode, providing an effective means for extending HDMI signals up to 150 meter over a single Cat 5e/6 cable. Pushing the technology and design to the limit, the compact design makes the VE811 easy to mount in any location. Engineered for todayâs digital trends, the VE811 is ideal for meeting rooms, or any setting that requires high quality HDMI video to be extended for great distances.- EAN: 4719264645754 - Vendorcode: VE811T-AT-G
249,-
HDMI audio-extractor (De-embedder) en HDMI-repeater
HDMI audio-extractor (De-embedder) en HDMI-repeater
Repeats the HDMI signal by up to 15 m and extracts the audio signal for a separate audio system Audio output: digital (optical + coaxial), analogue 2 x RCA (phono) Audio on/off switch for HDMI output Supports HDCP, HD Audio, Full HD and 3D Productspecificaties Connecties input HDMI Input Connecties output HDMI Output + Toslink Female + 3x RCA Female Kleur Zwart Materiaal buitenkant Metaal Max. resolutie 1920 x 1080 Type elektronisch apparaat HDMI Verpakking Giftbox Appliance type Video Repeater Connection, local 1x HDMI Connection, remote 1x HDMI, 1x TOSLINK, 1x RCA (Coax), 2x RCA (Stereo) Distance 15 m Ondersteunde technologie Full HD Resolutie 1080p Signals HDMI De VC880 is een HDMI-repeater met een toegevoegde de-embedder die het geluidssignaal van het HDMI-signaal extraheert en converteert. Dit houdt in dat gebruikers zowel het herhaalde HDMI beeld- en geluidsuitgangssignaal als de kwalitatief hoogstaande geluidsuitvoer kunnen kiezen: analoog stereogeluid via RCA-connectoren of dig…
159,-
ATEN VE811 AV transmitter & receiver Zwart audio/video extender
ATEN VE811 AV transmitter & receiver Zwart audio/video extender
The ATEN VE811 HDMI HDBaseT Extender guarantees the optimum HDMI connection up to 100 meter over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. The VE811 meets HDMI Specifi cation features including 3D, Deep Color, HD lossless audio formats and CEC passthrough. It supports Dolby Digital 5.1, DTS HD audio and video signals at resolutions up to 4K. In addition, the VE811 supports long reach mode, providing an effective means for extending HDMI signals up to 150 meter over a single Cat 5e/6 cable. Pushing the technology and design to the limit, the compact design makes the VE811 easy to mount in any location. Engineered for todayâs digital trends, the VE811 is ideal for meeting rooms, or any setting that requires high quality HDMI video to be extended for great distances.- EAN: 4719264645747 - Vendorcode: VE811-AT-G
509,-

Klanten-reviews van ATEN HDMI USB Extender

Er zijn nog geen beoordelingen voor dit productBen jij de eerste die een review plaatst?

Meer over ATEN HDMI USB Extender

Productomschrijving

Extends HDMI signal up to 60 m at 1080i, 40 m in full HD (1080p)
Uses two Cat 5e/6 cables to connect the local and the remote units
Supports USB touch panel
8 segment equalization adjustment switch optimizes display quality
Support Dolby True HD and DTS HD Master Audio
Built-in 8KV/15KV ESD protection
Supports all USB 2.0 full speed device
Supports wide screen formats
HDMI (3D, Deep Color); HDCP compatible
Only one mains adapter required for local and remote unit
- EAN: 4710423779716
- Vendorcode: VE803-AT-G

Productinformatie

    Productspecificaties

    Artikelnummer(s)
    EAN
    4710423779716
    Brand
    ATEN
    Kenmerken
    Soort
    AV-zender & ontvanger
    Maximum resolutie
    1920 x 1200 Pixels
    Ondersteundende kabel types
    Cat5e
    Maximaal bereik
    60 m
    Extended display identification data (EDID)
    Ja
    Elektrostatische ontlading (ESD) bescherming
    Ja
    Electrostatic Discharge (ESD) bescherming
    15 kV
    Ondersteunde video-modi
    1080i, 1080p
    Ondersteunde grafische resoluties
    640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
    Bandbreedte
    6,75 Gbit/s
    Bandbreedte
    225 MHz
    HDCP
    Ja
    Materiaal
    Metaal
    3D
    Ja
    Kleur van het product
    Zwart
    Poorten & interfaces
    Connectiviteitstechnologie
    Bedraad
    HDMI in
    1
    Aantal HDMI-uitgangen
    1
    USB-connectortype
    USB Type-A, USB Type-B
    Aansluiting voor netstroomadapter
    Ja
    Energie
    Bedrijfsspanning (zender)
    5 V
    Bedrijfsspanning (ontvanger)
    5 V
    Stroomverbruik (TX)
    1,04 W
    Stroomverbruik (RX)
    0,75 W
    Eisen aan de omgeving
    Bedrijfstemperatuur (T-T)
    0 - 50 °C
    Temperatuur bij opslag
    -20 - 60 °C
    Relatieve vochtigheid in bedrijf (V-V)
    0 - 80 procent
    Luchtvochtigheid bij opslag
    0 - 80 procent
    Gewicht en omvang
    Gewicht
    495 g
    Receiver afmetingen (B x D x H)
    90 x 57,4 x 24 mm
    Receiver gewicht
    160 g
    Transmitter afmetingen (WxDxH)
    90 x 57,4 x 24 mm
    Transmitter gewicht
    160 g
    Verpakking
    Breedte verpakking
    59 mm
    Diepte verpakking
    239 mm
    Hoogte verpakking
    160 mm
    Gewicht verpakking
    652 g
    Inhoud van de verpakking
    Inclusief AC-adapter
    Ja
    Meegeleverde kabels
    USB
    Gebruikershandleiding
    Ja
    Montage gereedschap
    Ja
    Logistieke gegevens
    (Buitenste) hoofdverpakking breedte
    315 mm
    (Buitenste) hoofdverpakking lengte
    490 mm
    (Buitenste) hoofdverpakking hoogte
    338 mm
    (Buitenste) hoofdverpakking brutogewicht
    13,5 kg
    Netto gewicht kartonnen doos
    9,9 kg
    Hoeveelheid per (buitenste) hoofdverpakking
    20 stuk(s)
