ATEN 2 x 2-Poorts HDMI Matrix Zwart

0
The VM0202H is a 2 X 2 HDMI Matrix Switch that meets HDMI Specification features including 3D, Deep Color up to 12- bit, and data rates up to 10.2 Gbps. Engineered for the future trend of high-definition video switching, the VM0202H supports computer and video signals at resolutions up to 4K.The VM0202H matrix switch provides high performance routi...

Verkopers met dit product

Verkoper
Bezorging
Prijs
Megekko NL logo
Megekko NL
6 dagen
gratis
239,-
Conrad NL logo
Conrad NL
8-12 werkdagen
gratis
234,99

Anderen bekeken ook

ATEN 2 x 2-Poorts HDMI Matrix Zwart
ATEN 2 x 2-Poorts HDMI Matrix Zwart
The VM0202H is a 2 X 2 HDMI Matrix Switch that meets HDMI Specification features including 3D, Deep Color up to 12- bit, and data rates up to 10.2 Gbps. Engineered for the future trend of high-definition video switching, the VM0202H supports computer and video signals at resolutions up to 4K.The VM0202H matrix switch provides high performance routing of 2 HDMI video sources such as HD camcorders, satellite boxes, HD-DVD players, high-definition Blue- ray players, home theater PCs and stand-alone streaming media players to any 2 HDMI displays. The remote control and convenient front panel pushbuttons allow you to efficiently cycle through HDMI source devices and displays, while the front panel LEDs indicate the source device for each display at a glance.- EAN: 4719264645501 - Vendorcode: VM0202H-AT-G
239,-
ATEN 2-Poorts HDMI-Splitter Zwart - [VS182B-AT-G]
ATEN 2-Poorts HDMI-Splitter Zwart - [VS182B-AT-G]
The VS182B True 4K HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to two displays at the same time. It supports all HDMIenabled equipment, such as DVD players, satellite set- top boxes and all HDMI monitors, displays, projectors, or TVs.The VS182B True 4K HDMI Splitter is HDMI 2.0 compliant, 4K at 60Hz (4:4:4), and supports multiple streaming audio, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.- EAN: 4719264645402 - Vendorcode: VS182B-AT-G
97,95
ATEN 8-poorts HDMI schakelaar
ATEN 8-poorts HDMI schakelaar
With more and more HDMI devices entering the Home Theater market, the need for simultaneous access to different HDMI A/V sources is becoming increasingly important. Now, the VS0801H 8-port HDMI Switch offers an easy and affordable way to add HDMI capabilities to your home theater system by allowing you to switch easily between up to eight HDMI A/V sources (such as an HD camcorder or satellite box, HD-DVD player, hi-def Blu-ray player, home theater PC, stand-alone streaming media player, gaming console, etc.) that are connected to your HDMI display.The remote control and convenient front panel pushbuttons allow you to quickly and easily toggle between HDMI sources, while the front panel LEDs indicate the source device at a glance. Furthermore, for complete system and install integration, RS-232 control is standard through the VS0801H's built-in bi-directional RS-232 serial remote port that allows the switch to be controlled through a high-end controller, PC, and/or home automation/home …
164,95
Aten VS182B-AT-G 2-poorts Hdmi-splitter Zwart
Aten VS182B-AT-G 2-poorts Hdmi-splitter Zwart
The VS182B True 4K HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to two displays at the same time. It supports all HDMIenabled equipment, such as DVD players, satellite set- top boxes and all HDMI monitors, displays, projectors, or TVs.The VS182B True 4K HDMI Splitter is HDMI 2.0 compliant, 4K at 60Hz (4:4:4), and supports multiple streaming audio, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.Afmetingen: 125 x 80 x 25 mmBandbreedte: 18 MHzBedieningsmogelijkheden: AutomatischData rate: 18 GbpsEDID-instellingen: Auto, Default, Port 1HDCP-versie: Compatibel met HDCP 2.2Ingang(en): 1x HDMIKleur: ZwartMateriaal buitenkant: MetaalMax. resolutie: 4096x2160Ondersteunde technologie: 1080p, 4K, ARC, Deep Color 30/36 bit, HDCPPoorten: 2-PoortsStekkertype: DC-JackStroomverbruik: 4.25 WType elektronisch apparaat: HDMIUitgang(en): 2x HDMI-U…
173,95
ATEN 4 x 4-Poorts True 4K HDMI Schakelaar Zwart
ATEN 4 x 4-Poorts True 4K HDMI Schakelaar Zwart
ATENâs VM0404HB is a True 4K HDMI Matrix Switch series that offers an easy and affordable way to route any of 4 HDMI video sources to any of 4 HDMI displays. Featured with the superior video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), the VM0404HB delivers robust signal routing and ultra-fast digital video switching, making it perfect for applications where routing of True 4K digital signals is required, such as event venues, digital classrooms, auditoriums, department stores, and more. The intuitive GUI design of the VM0404HB allows users to flexibly configure any input to output connections, eliminating the need of frequent physical configuration changes. In addition to the built-in web GUI, the VM0404HB can be operated through front-panel pushbuttons, IR remote, RS-232 control, and Telnet via Ethernet connections, giving users the ultimate convenience while keeping the system available with performance video switching anytime.- EAN: 4719264646829 - Vendorcode: VM0404HB-AT-G
849,-
Aten VS184B-AT-G 4-poorts Hdmi-splitter Zwart
Aten VS184B-AT-G 4-poorts Hdmi-splitter Zwart
The VS184B True 4K HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to four displays at the same time. It supports all HDMIenabled equipment, such as DVD players, satellite set- top boxes and all HDMI monitors, displays, projectors, or TVs.The VS182B True 4K HDMI Splitter is HDMI 2.0 compliant, 4K at 60Hz (4:4:4), and supports multiple streaming audio, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.Afmetingen: 200 x 80 x 25 mmBandbreedte: 18 MHzBedieningsmogelijkheden: AutomatischData rate: 18 GbpsEDID-instellingen: Auto, Default, Port 1HDCP-versie: Compatibel met HDCP 2.2Ingang(en): 1x HDMIKleur: ZwartMateriaal buitenkant: MetaalMax. resolutie: 4096x2160Ondersteunde technologie: 1080p, 4K, ARC, Deep Color 30/36 bit, HDCPPoorten: 4-PoortsStekkertype: Euro / Type C (CEE 7/16)Stroomverbruik: 4.84 WType elektronisch apparaat: HDMIUitg…
237,95
ATEN 8-Poorts HDMI-Splitter Zwart - [VS0108HB-AT-G]
ATEN 8-Poorts HDMI-Splitter Zwart - [VS0108HB-AT-G]
The ATEN VS0108HB is designed for applications that require the routing of one HDMI source to 8 compatible display devices. It supports Dolby True HD and DTS HD Master Audio, video signals up to True 4K, data rates up to 18 Gbps, 3D, and HD lossless audio formats. Featuring ATEN EDID technology, the VS0108HB guarantees continuous EDID communication with connected devices and ensures that the HDMI sources power-up properly and maintain correct video outputs.Engineered to meet todayâs demand of True 4K signal transmission and user- oriented design, ATEN VS0108HB is a powerful solution for a wide range of settings, such as home theater, commercial settings, educational centers, meeting rooms, or wherever needed to meet application requirements.- EAN: 4719264646423 - Vendorcode: VS0108HB-AT-G
369,-
ATEN 2-Poorts DisplayPort Splitter Zwart
ATEN 2-Poorts DisplayPort Splitter Zwart
The VS192 2-Port 4K DisplayPort Splitter is the perfect solution for anyone who needs to send one source of DisplayPort high definition video to two DisplayPort displays. The VS192 can not only split but also expand DisplayPort audio/video signal on two DisplayPort monitors which is ideal for any multi-display application.The VS192 is compatible with DisplayPort 1.2a and can support up to 4K resolution at 60 Hz, making it effective and ideal for use with all DisplayPort displays in home theater applications, as well as in corporate, educational and commercial settings.- EAN: 4719264645242 - Vendorcode: VS192-AT-G
151,95
HDMI 4x2 Matrix Switcher / Splitter met Afstandsbediening ondersteunt ARC / MHL / 4Kx2K / 3D 4 Poorts HDMI Input 2 Poorts HDMI Output
HDMI 4x2 Matrix Switcher / Splitter met Afstandsbediening ondersteunt ARC / MHL / 4Kx2K / 3D 4 Poorts HDMI Input 2 Poorts HDMI Output
1. HDMI 1.4b. 2. HDMI resoluties tot 4096x2160/30Hz. 3. HDMI 3.2Gbps data overdracht voor een tmds klok tot 320MHz. 4. Ondersteunt 3D video MHL ARC5. Biedt 8/10/12 bit deep color6. Wanneer de input resolutie 1080p is of lager dan ondersteunt de standaard AWG26 HDMI kabel een input tot 15 meter en een output tot 25 meter 7. Wanneer de input resolutie 4K is dan ondersteunt de standaard AWG26 HDMI kabel een input tot 12 meter en een output tot 15 meter8. Heeft een 3.5mm audio output en een optische output9. Biedt vier schakelbare HDMI inputs of kan twee HDMI outputs verdelen10. Ondersteunt 5.1 audio kanalen11. Ondersteunt een high definition beeldscherm en biedt plaats voor meervoudige output HD signal bronnen zoals een DVD speler A/V receiver en een set top TV box12. Ondersteunt een 5V-12V power adapter
88,50

Klanten-reviews van ATEN 2 x 2-Poorts HDMI Matrix Zwart

Er zijn nog geen beoordelingen voor dit productBen jij de eerste die een review plaatst?

Meer over ATEN 2 x 2-Poorts HDMI Matrix Zwart

Productomschrijving

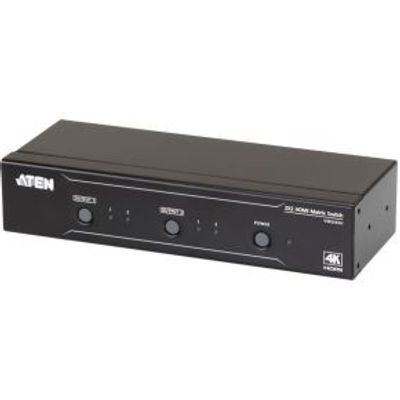

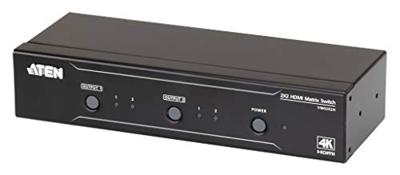

The VM0202H is a 2 X 2 HDMI Matrix Switch that meets HDMI Specification features including 3D, Deep Color up to 12- bit, and data rates up to 10.2 Gbps. Engineered for the future trend of high-definition video switching, the VM0202H supports computer and video signals at resolutions up to 4K.

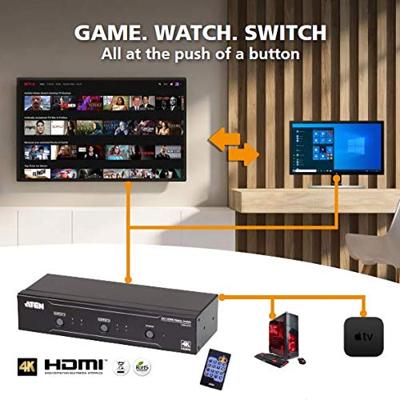

The VM0202H matrix switch provides high performance routing of 2 HDMI video sources such as HD camcorders, satellite boxes, HD-DVD players, high-definition Blue- ray players, home theater PCs and stand-alone streaming media players to any 2 HDMI displays. The remote control and convenient front panel pushbuttons allow you to efficiently cycle through HDMI source devices and displays, while the front panel LEDs indicate the source device for each display at a glance.
- EAN: 4719264645501
- Vendorcode: VM0202H-AT-G

Productinformatie

    Productspecificaties

    Artikelnummer(s)
    EAN
    4719264645501
    Brand
    ATEN
    Kenmerken
    Type product
    AV-matrixschakelaar
    Overdrachtssnelheid
    10,2 Gbit/s
    Maximale pixelsnelheid
    340 MHz
    Maximum resolutie
    4096 x 2160 Pixels
    HDCP
    Ja
    HDCP versie
    1.4
    3D
    Ja
    Upgraden van firmware mogelijk
    Ja
    Extended display identification data (EDID)
    Ja
    Ondersteunende oplossingen
    4096 x 2160, 3840 x 2160
    Design
    Kleur behuizing
    Zwart
    Materiaal behuizing
    Metaal
    Rack-montage
    Ja
    Soort bediening
    Knoppen
    LED-indicatoren
    Ja
    Afstandsbediening inbegrepen
    Ja
    Beeldscherm
    Ingebouwd display
    Nee
    Poorten & interfaces
    Aantal HDMI-invoerpoorten
    2
    Aantal HDMI-uitvoerpoorten
    2
    USB-connectortype
    Micro-USB
    Aantal USB-aansluitingen
    1
    RS-232 port
    1
    Aansluiting voor netstroomadapter
    Ja
    Energie
    Stroomverbruik (typisch)
    4,3 W
    Eisen aan de omgeving
    Bedrijfstemperatuur (T-T)
    0 - 40 °C
    Temperatuur bij opslag
    -20 - 60 °C
    Relatieve vochtigheid in bedrijf (V-V)
    0 - 80 procent
    Luchtvochtigheid bij opslag
    0 - 80 procent
    Logistieke gegevens
    Hoeveelheid per (buitenste) hoofdverpakking
    5 stuk(s)
    (Buitenste) hoofdverpakking brutogewicht
    5,33 kg
    (Buitenste) hoofdverpakking lengte
    325 mm
    (Buitenste) hoofdverpakking breedte
    250 mm
    (Buitenste) hoofdverpakking hoogte
    175 mm
    Netto gewicht kartonnen doos
    4,2 kg
    Code geharmoniseerd systeem (HS)
    85299097
    Gewicht en omvang
    Breedte
    200 mm
    Diepte
    76 mm
    Hoogte
    42 mm
    Gewicht
    840 g
    Breedte verpakking
    59 mm
    Diepte verpakking
    239 mm
    Hoogte verpakking
    160 mm
    Gewicht verpakking
    980 g
    Inhoud van de verpakking
    Rekbevestigingspakket
    Ja
    Gebruikershandleiding
    Ja
    Inclusief AC-adapter
    Ja
    Inclusief IR-ontvanger
    Ja
