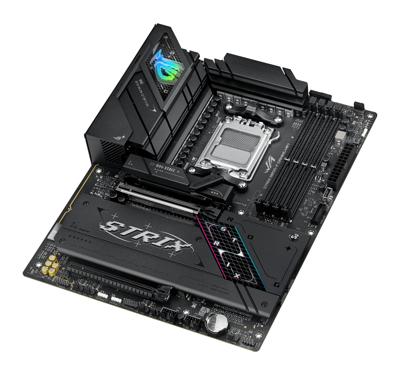

ASUS ROG STRIX B850-F GAMING WIFI AMD B850 Socket AM5 ATX

Productspecificaties

Artikelnummer(s)

EAN

4711387771013

Brand

ASU

Kenmerken

Ondersteunt Windows

Windows 11

Overige specificaties

Audio-uitgang

<strong>ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*</strong><br /> - Impedance sense for front and rear headphone outputs<br /> - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking<br /> - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input<br /> - Supports up to 32-Bit/384 kHz playback on front panel<br /><strong>Audio Features <br /></strong>- SupremeFX Shielding Technology<br />- Savitech SV3H712 AMP<br />- Rear optical S/PDIF out port<br />- Premium audio capacitors<br />- Audio cover<br />* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. <br />** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

Speciale eigenschappen

<strong>Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports<br /><br />AMD Ryzen™ 7000 & 9000 Series Desktop Processors<br /></strong>M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode)<br />M.2_2 (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)<br /><strong>AMD Ryzen™ 8000 Series Desktop Processors<br /></strong>M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode)<br />M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4/x2 mode)*<br /><br /><strong>AMD B850 Chipset<br /></strong>M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4)**<br />M.2_4 (Key M), type 2280 (supports PCIe 4.0 x4)<br />2 x SATA 6Gb/s ports<br />* Specifications vary by CPU types.<br />** M.2_3 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_3 will be disabled.<br /><strong><br />AMD RAIDXpert2 Technology<br /></strong>Ryzen™ 9000 Series Processors: RAID 0/1/5/10<br />Ryzen™ 8000 Series Processors: RAID 0/1<br />Ryzen™ 7000 Series Processors: RAID 0/1/10

Andere kenmerken

4 x DIMM slots, max. 256GB, DDR5<br />Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors<br /> ECC and Non-ECC, Un-buffered DIMM<br />Dual channel memory architecture<br />Supports AMD Extended Profiles for Overclocking (EXPO™)<br />ASUS Enhanced Memory Profile (AEMP)<br />* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.<br />** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Grafische uitvoer

1 x DisplayPort*<br />1 x HDMI™ port**<br />- Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.<br />* Supports max. 8K@30Hz as specified in DisplayPort 1.4<br />** Supports 4K@60Hz as specified in HDMI 2.1<br />*** VGA resolution support depends on processors' or graphic cards' resolution.
