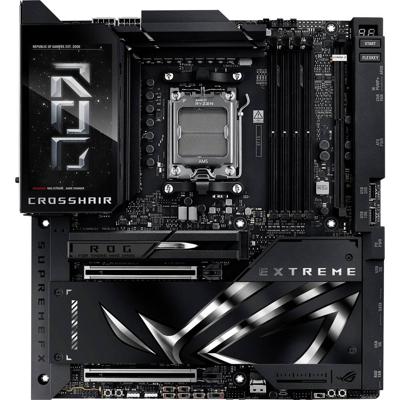

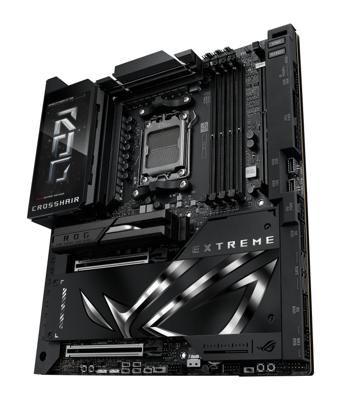

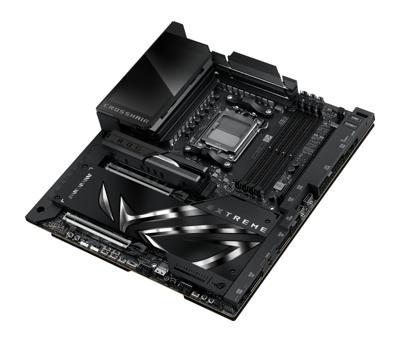

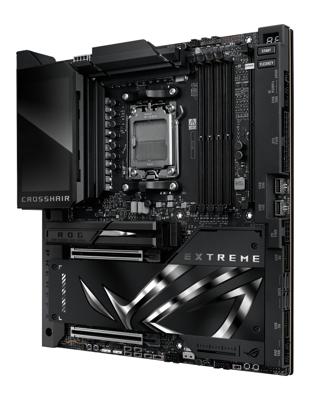

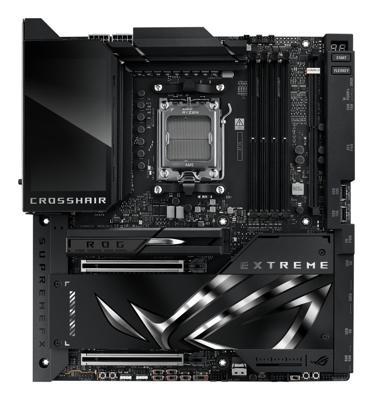

Asus MB ASUS ROG CROSSHAIR X870E EXTREME Moederbord Socket AMD AM5 Vormfactor E-ATX Moederbord chipset AMD® X870E

Productspecificaties

Artikelnummer(s)

EAN

4711387984963

Processor

Processorfabrikant

AMD

Processor socket

Socket AM5

Compatibele processors

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Supported processor sockets

Socket AM5

Geheugen

Ondersteunde geheugen types

DDR5-SDRAM

Aantal geheugenslots

4

Geheugen slots type

DIMM

Geheugen kanaal

Dubbelkanaals

ECC-compatibiliteit

ECC & Niet-ECC

Maximum intern geheugen

256 GB

Niet gebufferd geheugen

Ja

Opslag-controllers

Ondersteunde types opslag-drives

HDD & SSD

Ondersteunde opslagstationinterfaces

M.2, SATA III, SlimSAS

Aantal storage drives ondersteund

10

RAID support

Ja

Soorten RAID

0, 1, 5, 10

Grafisch

Ondersteuning voor parallel processing

Niet ondersteund

Ingebouwde grafische adapter

Nee

Interne aansluitingen

USB 2.0 aansluitingen

2

USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen

2

USB 3.2-connectoren (3.1 Gen 2)

1

USB 3.2 Gen 2x2-aansluitingen

1

Aantal SATA III connectors

4

Aansluiting voor audiopaneel aan voorzijde

Ja

Voorpaneel-connector

Ja

ATX Power connector (24-pin)

Ja

Aansluiting voor CPU koeler

Ja

Aansluitingen voor behuizingsventilatoren

2

EPS power connector (8-pin)

Ja

12V vermogen-connector

Ja

RGB LED-aansluitrail

Ja

Aansluitingen achterzijde

Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A

8

Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C

2

Aantal USB4 Gen 3×2-poorten

2

Aantal Ethernet LAN (RJ-45)-poorten

2

PS/2 poort(en)

1

Aantal HDMI-poorten

1

S/PDIF-uitgang

Ja

WiFi-AP antenna jack

1

Netwerk

Ethernet LAN

Ja

Ethernet interface type

5 Gigabit Ethernet, 10 Gigabit Ethernet

Wifi

Ja

Wifi-standaard

Wi-Fi 7 (802.11be)

Wi-Fi-standaarden

Wi-Fi 7 (802.11be)

Bluetooth

Ja

Bluetooth-versie

5.4

Kenmerken

Chipset moederbord

AMD X870E

Audiochip

Realtek ALC4082

Audio-uitgangskanalen

7.1 kanalen

Kleur van het product

Zwart

Component voor

PC

Moederbord form factor

Verlengd ATX

Moederbord chipset familie

AMD

Ondersteunt Windows

Windows 11

Uitbreidingsmodules

PCI Express x16 (Gen 4.x) sleuven

2

PCI Express x16 (Gen 5.x) sleuven

2

Aantal M.2 (M) slots

5

1e M.2 grootste sleutelgrootte

22110

1e M.2 hoogste PCI Express-generatie

5.0

2e M.2 grootste sleutelgrootte

2280

2e M.2 hoogste PCI Express-generatie

5.0

3e M.2 grootste sleutelgrootte

22110

3e M.2 hoogste PCI Express-generatie

5.0

4e M.2 grootste sleutelgrootte

22110

4e M.2 hoogste PCI Express-generatie

4.0

5e M.2 grootste sleutelgrootte

22110

5e M.2 nieuwste PCI Express-generatie

4.0

BIOS

BIOS type

UEFI AMI

Grootte BIOS-geheugen

512 Mbit

Verpakking

Breedte verpakking

380 mm

Diepte verpakking

320 mm

Hoogte verpakking

125 mm

Gewicht verpakking

5,66 kg

Gewicht en omvang

Breedte

305 mm

Diepte

277 mm

Inhoud van de verpakking

Meegeleverde kabels

SATA

Antenne inbegrepen

Ja

Meegeleverde drivers

Ja

Overige specificaties

Audio-uitgang

<strong>ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*</strong><br /> - Impedance sense for front and rear headphone outputs<br /> - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking<br /> - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input<br /> - Supports up to 32-Bit/384 kHz playback on front panel<br /><strong>Audio Features </strong><br />- SupremeFX Shielding Technology <br />- ESS^® ES9219 QUAD DAC<br />- LED-illuminated audio jacks<br />- Rear optical S/PDIF out port<br />- Premium audio capacitors<br />* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.<br />** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

Speciale eigenschappen

<strong>Supports up to 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports*</strong><br /><strong>AMD Ryzen™ 9000 & 7000 Series Desktop Processors</strong><br />M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)<br />M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**<br />M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**<br /><strong>AMD Ryzen™ 8000 Series Desktop Processors</strong><br />M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)<br />M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)<br />M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports)<br /><strong>AMD X870E Chipset</strong><br />DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)<br />DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)<br />SlimSAS connector supports PCIe 4.0 x4 mode via an SFF-8654 adapter cable. The cable is purchased separately.<br />4 x SATA 6Gb/s ports<br />* Specifications vary by CPU types.<br />** When M.2_2 is enabled, but M.2_3 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled.<br />** When M.2_3 is enabled, but M.2_2 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will run in x4 mode.<br />** When both M.2_2 and M.2_3 are enabled, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled.

Andere kenmerken

4 x DIMM slots, max. 256GB, DDR5 <br /> Supports up to<br /> 8200+MT/s(OC) with Ryzen™ 9000 Series Processors,<br /> 9000+MT/s(OC) with Ryzen™ 8000 Series Processors,<br /> 8000+MT/s(OC) with Ryzen™ 7000 Series Processors,<br /> ECC and Non-ECC, Un-buffered DIMM*<br />Dual Channel Memory Architecture<br />Supports AMD Extended Profiles for Overclocking (EXPO™)<br />ASUS Enhanced Memory Profile (AEMP)<br />NitroPath DRAM Technology<br />*Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under theSupport tab of product information site or visit https://www.asus.com/support/download-center/.<br />* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Grafische uitvoer

1 x HDMITM port**<br />2 x USB4® (40Gbps) ports support USB Type-C^® display outputs***<br />* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.<br />** Supports 4K@60Hz as specified in HDMI 2.1.<br />*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a<br />**** VGA resolution support depends on processors' or graphic cards' resolution.
