Productomschrijving

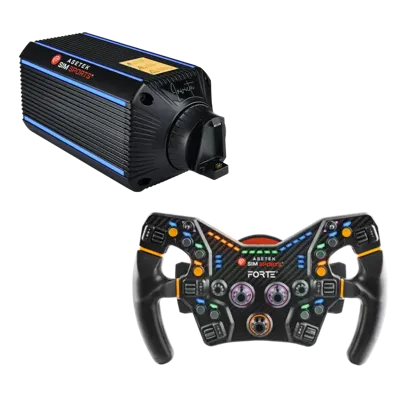

The Asetek SimSports Invicta Wheelbase 27Nm + Forte Formula Handlebar bundle offers a high-end sim racing experience with an emphasis on performance, precision and flexibility. Here is an overview of the main features of the Invicta 27Nm wheelbase and the Forte Formula handlebar:
Asetek SimSports Invicta Wheelbase (27Nm)
The Invicta wheelbase is designed to give sim racers an incredibly realistic and detailed experience, with a peak torque of 27Nm and a high encoder resolution (22-bit, 4,000,000 steps per revolution). This provides extremely detailed force feedback where you can feel even the smallest details of the asphalt. The main features are:
- Direct Drive (DD) Force Feedback: Provides incredible force and accuracy in the feedback, making you feel like you're actually in a race car.
- Encoder resolution: 22-bit (0.000085 degrees), resulting in incredible precision (4 million steps per revolution).
- Compatibility: Works seamlessly with a wide range of popular sim racing games such as Assetto Corsa, iRacing, DiRT Rally 2.0< /em>, rFactor 2, and more.
- Quick-Release: Easy-to-use system to quickly and safely disconnect the steering wheel without cables or batteries.
- RGB LEDs: Up to six fully customizable ARGB LED strips for personalization of your rig (can be customized via RaceHub software).
- Rugged design: The housing is made of anodized, extruded aluminum, while the slip ring is tested to 200 million rotations for durability.
Invicta Wheelbase Specifications:
- Peak torque: 27Nm
- Encoder resolution: 22 bits (0.000085 degrees)
- RGB LEDs: 6x25 programmable LEDs
- Dimensions:
- Height: 133 mm
- Width: 132 mm
- Length: 327 mm (incl. quick release)
- Weight: 11.3 kg
- Power supply: 400W
- Mounting options: T-nuts, front mounting, bottom mounting, side mounting
Asetek SimSports Forte Formula Handlebar
The Forte Formula steering wheel is designed for the serious sim racer and has features that mimic the experience of a real formula car:
- Ergonomic design: The handlebar has soft silicone rubber grips for ultimate comfort, ideal for long racing sessions.
- Built-in buttons and switches: The wheel contains 128 input options, with 12 push buttons, 2 toggle switches, 2 kinky switches, 3 rotary knobs and 6 thumb encoders. This provides full control over your settings during the race.
- Contactless shift paddles: For quick and seamless gear changes. The steering wheel can also be upgraded later with a dual-clutch system for even better control when starting.
- RGB Lighting: The handlebar features 49 programmable ARGB LEDs, including RPM and flag lights, that can be customized for a personalized experience.
- Carbon fiber construction: The front of the handlebar is made of 2mm thick woven carbon fiber, making the handlebar light, sturdy and responsive.
Forte Formula Handlebar Specifications:
- LEDs: 49 ARGB LEDs, including 15 for speed and 6 for flag lights
- Buttons: 12 push buttons, 2 toggle switches, 2 kinky switches, 3 rotary encoders, 6 thumb encoders
- Switch paddles: Contactless magnetic paddles, optionally expandable to dual-clutch
- Material: Injection molded carbon fiber reinforced composite with laser etched structure
- Dimensions:
- Diameter: 290 mm (standard)
- Diameter: 294 mm (XL handles)
Software - Asetek SimSports RaceHub
With the RaceHub software you can fully tailor the performance of both the wheelbase and the steering wheel to your personal preferences. This includes adjusting:
- Force feedback settings
- Button assignments
- LED configurations
- Profile settings per car and circuit
- Power, damping and base glide settings
Compatibility and Installation
- Platforms: Windows 10 and 11
- Games: Compatible with a wide range of popular sim racing games such as Assetto Corsa, iRacing, F1 series em>, Project Cars, rFactor 2, and more.
What's in the box?
- Asetek Invicta 27Nm Wheelbase
- Asetek Forte Formula Steering Wheel
- Power supply (400W)
- Cables (USB-C to USB-A, power cables)
- Manuals and assembly instructions
This bundle provides everything you need for an intense and immersive sim racing experience with the accuracy and realism you expect from a high-end system. The Asetek system is designed for flexibility, durability and ultimate performance, leaving you ready to take on the virtual racetracks!
