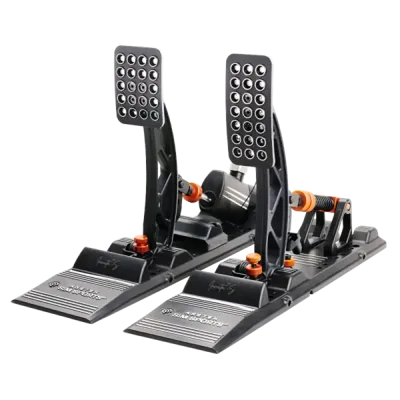

Asetek SimSports Invicta™ S-Series Gas and Brake Pedals
Invicta™ S-Series Brake and Throttle - The Ultimate Hydraulic Sim Racing Pedals
You've been asking for it, and now it's here: the Invicta™ S-Series Brake and Throttle! This new version of the Invicta™ Sim Racing Pedals is exactly what you need to take your sim racing experience to the next level. The pedals are now separate giving you the freedom to adjust the distance between the brake and accelerator pedals by up to 100mm, so you you can fully tailor your setup to your personal preferences. And the best part is: everything can be connected via just one cable.
With the Invicta™ S-Series you get top quality hydraulics, designed to recreate the authentic race car experience. The use of THORP™ (Twin Hydraulic Opposing Rapid Pistons), the advanced hydraulic brake cylinder, provides unparalleled braking power and the ultimate racing feeling. The pedals are plug-and-play and with the Asetek SimSports RaceHub™ software you can quickly and easily tailor them to your preferences.
Designed for Simracers and Racers
The Invicta™ S-Series is designed with both durability and ease of use in mind. These pedals are made for serious sim racers looking for the best possible performance. The pedals offer a realistic hydraulic braking system that has been tested with 100 bar pressure in the hydraulic system and up to 200 kg mechanical pedal pressure, which guarantees an ultra-realistic racing experience.
The hydraulic brake cylinder (THORP™) provides the hardest and most consistent braking force, something you often don't find with other pedals. The feeling of the brake pedal is like pushing against a concrete wall and remains constantly hard throughout use. This means you can develop muscle memory and replicate the trail braking feeling, which is essential for improving your lap times.
If you're looking for the ultimate racing experience that makes you feel like you're driving a real car, look no further: the Invicta™ S-Series > offers exactly what you need.
Features of the Invicta™ S-Series Pedals
Throttle system
- Cast aluminum pedal arm with integrated ball bearings for zero play operation and a long lifespan.
- 16-bit magnetic wireless Hall TPS (Throttle Position Sensor) without mechanical wear, ensuring a maintenance-free system.
- Custom throttle curves can be fully customized via the RaceHub software to simulate real race car butterfly openings, for example a linear curve< /strong> for dry conditions and a progressive curve for wet conditions.
- Interchangeable springs for adjusting the pedal hardness and the adjustable stroke of the pedal.
- Pedal arm designed for a force of 200 kg, with a burst pressure of 700 kg.
Brake system
- The THORP™ hydraulic brake cylinder offers an unparalleled racing experience, with a patent pending for the Twin Hydraulic Opposing Rapid Pistons technology. li>
- Automotive quality pressure sensor that measures pressure from 0 to 100 bar and is tested to withstand repetitive pressures of 100 bar (equivalent to 180 kg force on the pedal plate).
- 100 bar pressure equals a very realistic braking feeling that approaches the power of real racing car systems.
- Three interchangeable elastomers provide different hardness settings and can be easily adjusted via the RaceHub software.
- Manually adjustable initial hardness to simulate the perfect distance between brake pad and brake disc, plus an integrated physical stop to avoid overloading the elastomer .
- Pedal arm designed for a force of 200 kg with a burst pressure of 700 kg.
Design and Functionality
- The Danish design of the Invicta™ S-Series is radical and minimalist, with anodized black aluminum pedals and CNC-machined cutting surfaces for a sleek finish and durability.
- The pedal base has an integrated heel rest and an RGB LED that is fully customizable via the RaceHub software . You can adjust the LED, dim it or turn it off completely, depending on your preference.
- Adjustable pedal plates along the X and Y axis ensure optimal tuning to your posture and preferences.
- RaceHub software allows you to store calibrations (pressures, deadzones, etc.) in EPROM, allowing you to save settings for each simulator or game are retained. There is only one USB connection for the entire setup.
- All adjustable mechanical functions are coloured orange by default, making them easy to recognize and adjust.
Sustainability and Quality
- The Invicta™ pedals are designed and developed in Denmark, with sustainable production and 100% reuse of waste material > on location.
- They have been tested for 1,000,000 activations, which far exceeds the specifications of most race cars. This ensures unbeatable reliability and long service life.
- Compatible with the Invicta™ Throttle Footrest: a handy accessory that allows you to rest your foot comfortably during long races.
Dimensions and Weight
- Depth: 457 mm
- Width: 212 mm
- Height: 256 mm
- Weight: 3 kg
Summary - Invicta™ S-Series Brake and Throttle Pedals
The Invicta™ S-Series Brake and Throttle pedals offer a top-of-the-range hydraulic system, designed to recreate the experience of driving a real race car. The THORP™ brake cylinder provides constant, hard braking, while the throttle system and adjustable settings ensure a completely personal setup. Thanks to the RaceHub software, setting up the pedals is simple and quick, while the durability and quality of the pedals ensure that you can enjoy the best performance for years to come. p>
The Invicta™ S-Series is the choice for the serious sim racer looking for authentic performance, accuracy and reliability. Get ready to take your racing experience to the highest level!
