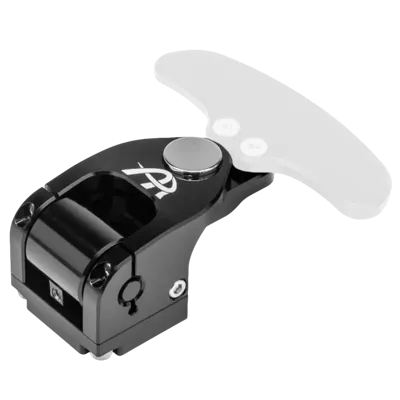

Proven in motorsports and used as a standard in the McLaren Artura GT4: Like the Gen5 shifters, the new generation of our proven shifters are milled from aluminum and extremely robust. In addition to the well-known and proven features of the previous model, the Gen6 Shifter offers even greater reliability thanks to non-contact Hall switch operation. Preloaded ball bearings ensure even smoother and maximum play-free operation, rubber stops for a clearly noticeable noise reduction with consistent precision!
! Compatible with the McLaren Esports series!
TECHNICAL SPECIFICATIONS/DETAILS
- New generation of magnetic shifters developed from scratch for motorsport applications
- Compatible with all wheels from the Ascher Racing McLaren Esports series; unlimited exchange of components thanks to identical mounting points for the shifters
- Magnetic snap function for precise and reliable operation
- CNC-machined from high quality aluminum, black anodized and laser engraved
- Maximum precision and reliability under harsh conditions, sealed electronics for waterproof operation (IP67*), operating window -40°C to +85°C
- Highly optimized for ultra-low power consumption for use in battery-powered devices (40 µA), eliminating the need for sleep modes or reduced cycle times
- Small dimensions for ergonomic integration and low weight (57g/shifter, without paddles)
Changes compared to Gen5 Shifter:
- Smooth and play-free operation thanks to preloaded ball bearings
- Non-contact Hall switch operation for unlimited electrical lifespan, mechanical lifespan well over 20,000,000 operations
- Soundproofed by rubber stops at both ends with unlimited precision thanks to small tolerances
- No sensor calibration required (measuring magnet N-S orientation instead of strength)
- No sensor drift when time or temperature changes - permanently fixed shifts
- No additional signal filters required (hardware or software) thanks to perfect output signal
- Built-in sensor hysteresis for precise and stable shifts
Gasket required between shift paddle and steering wheel housing; not included in the delivery
SELECTABLE PADDLE OPTIONS
None - Paddleshifter comes without paddles
Formula - 26mm width, 67mm height, 13g weight (each)
GT - 34mm width, 122mm height, 30g weight (each)
SCOPE OF DELIVERY
Depending on choice: no paddles, 2x Formula Paddles, 2x GT Paddles
2x Single Paddleshifter Gen6
2x 3-pin connection cable
4x screws for mounting the paddles (DIN 7991 M3x8)
2x 6mm paddle spacers
4x screws for mounting the shifters with spacers (DIN 7991 M3x14)
