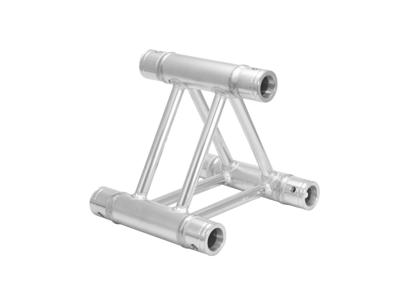

ALUTRUSS TRILOCK E-GL33 250 3-way Cross Beam
ALUTRUSS TRILOCK E-GL33 250 3-way Cross Beam

ALUTRUSS TRILOCK E-GL33 250 3-way Cross Beam

0
3-point truss systemStrong EN-AW 6082 alloy for high loadsLow weightDistance center - center: horizontal 240 mm, vertical 207 mmEasy installationTrusspipe: 50 mmMade in EuropeFor application areas such as: Theater; Trade fair and shop fitting; clubs/dancing schoolPackage contents1 x connection setSetup:Easy installationTrusspipe:50 mm x 2 mmWelding...

Snel naar

  • Prijzen

    PrijzenProductomschrijvingProductspecificaties

    Verkopers met dit product

    Verkoper
    Bezorging
    Prijs
    ST-shop.nl logo
    ST-shop.nl
    1-3 dagen
    niet bekend
    €161,25

    Anderen bekeken ook

    Nieuw
    ALUTRUSS TRILOCK E-GL33 250 3-way Cross Beam
    ALUTRUSS TRILOCK E-GL33 250 3-way Cross Beam
    3-point truss systemStrong EN-AW 6082 alloy for high loadsLow weightDistance center - center: horizontal 240 mm, vertical 207 mmEasy installationTrusspipe: 50 mmMade in EuropeFor application areas such as: Theater; Trade fair and shop fitting; clubs/dancing schoolPackage contents1 x connection setSetup:Easy installationTrusspipe:50 mm x 2 mmWelding technique:TIG-weldingWelding material:AlMg 5Alloy:AIMgSi1 T6Color:Alu coloredStrut diameter x thickness:20 x 2mmDimensions:Length: 25 cmWidth: 29 cmHeight: 25,70 cmWeight:2,65 kg
    161,25
    Nieuw
    ALUTRUSS TRILOCK E-GL33 210 3-way Cross Beam
    ALUTRUSS TRILOCK E-GL33 210 3-way Cross Beam
    TRILOCK E-GL33 3-point truss systemTRILOCK E-GL33 is a 3-point truss system made of aluminum. The individual elements are connected via three cones, pivots and pins. TRILOCK E-GL33 is made of EN-AW 6082 T6 (AlMgSi1 T6) alloy for high loads. The advantage of the conical connection system is that the cones completely fit into the main chords so that highest load capacity is guaranteed. The Quick-Lock system enables fast, efficient and highly aesthetic assembly when the truss constructions are frequently assembled and dismantled. The three main chords are made of 50 mm aluminum tube with 2 mm wall thickness and offer a good relation between strength and weight. The braces have a diameter of 20 mm with 2 mm wall thickness and provide stability for this truss system. With 290 and 257 mm outer dimensions, TRILOCK E-GL33 is a stable truss system for higher loads and extended durability.This system is mainly designed for intense use in stage installations, fair installations, event installatio…
    161,25
    Nieuw
    ALUTRUSS TRILOCK E-GL33 290 3-way Cross Beam
    ALUTRUSS TRILOCK E-GL33 290 3-way Cross Beam
    TRILOCK E-GL33 3-point truss systemTRILOCK E-GL33 is a 3-point truss system made of aluminum. The individual elements are connected via three cones, pivots and pins. TRILOCK E-GL33 is made of EN-AW 6082 T6 (AlMgSi1 T6) alloy for high loads. The advantage of the conical connection system is that the cones completely fit into the main chords so that highest load capacity is guaranteed. The Quick-Lock system enables fast, efficient and highly aesthetic assembly when the truss constructions are frequently assembled and dismantled. The three main chords are made of 50 mm aluminum tube with 2 mm wall thickness and offer a good relation between strength and weight. The braces have a diameter of 20 mm with 2 mm wall thickness and provide stability for this truss system. With 290 and 257 mm outer dimensions, TRILOCK E-GL33 is a stable truss system for higher loads and extended durability.This system is mainly designed for intense use in stage installations, fair installations, event installatio…
    168,75
    Nieuw
    ALUTRUSS TRILOCK E-GL33 500 3-way Cross Beam
    ALUTRUSS TRILOCK E-GL33 500 3-way Cross Beam
    TRILOCK E-GL33 3-point truss systemTRILOCK E-GL33 is a 3-point truss system made of aluminum. The individual elements are connected via three cones, pivots and pins. TRILOCK E-GL33 is made of EN-AW 6082 T6 (AlMgSi1 T6) alloy for high loads. The advantage of the conical connection system is that the cones completely fit into the main chords so that highest load capacity is guaranteed. The Quick-Lock system enables fast, efficient and highly aesthetic assembly when the truss constructions are frequently assembled and dismantled. The three main chords are made of 50 mm aluminum tube with 2 mm wall thickness and offer a good relation between strength and weight. The braces have a diameter of 20 mm with 2 mm wall thickness and provide stability for this truss system. With 290 and 257 mm outer dimensions, TRILOCK E-GL33 is a stable truss system for higher loads and extended durability.This system is mainly designed for intense use in stage installations, fair installations, event installatio…
    168,75
    Nieuw
    ALUTRUSS TRILOCK E-GL33 1000 3-way Cross Beam
    ALUTRUSS TRILOCK E-GL33 1000 3-way Cross Beam
    TRILOCK E-GL33 3-point truss systemTRILOCK E-GL33 is a 3-point truss system made of aluminum. The individual elements are connected via three cones, pivots and pins. TRILOCK E-GL33 is made of EN-AW 6082 T6 (AlMgSi1 T6) alloy for high loads. The advantage of the conical connection system is that the cones completely fit into the main chords so that highest load capacity is guaranteed. The Quick-Lock system enables fast, efficient and highly aesthetic assembly when the truss constructions are frequently assembled and dismantled. The three main chords are made of 50 mm aluminum tube with 2 mm wall thickness and offer a good relation between strength and weight. The braces have a diameter of 20 mm with 2 mm wall thickness and provide stability for this truss system. With 290 and 257 mm outer dimensions, TRILOCK E-GL33 is a stable truss system for higher loads and extended durability.Please note: this truss system must never be combined with other systems!This system is mainly designed for …
    193,75
    Nieuw
    ALUTRUSS TRILOCK E-GL33 1500 3-way Cross Beam
    ALUTRUSS TRILOCK E-GL33 1500 3-way Cross Beam
    TRILOCK E-GL33 3-point truss systemTRILOCK E-GL33 is a 3-point truss system made of aluminum. The individual elements are connected via three cones, pivots and pins. TRILOCK E-GL33 is made of EN-AW 6082 T6 (AlMgSi1 T6) alloy for high loads. The advantage of the conical connection system is that the cones completely fit into the main chords so that highest load capacity is guaranteed. The Quick-Lock system enables fast, efficient and highly aesthetic assembly when the truss constructions are frequently assembled and dismantled. The three main chords are made of 50 mm aluminum tube with 2 mm wall thickness and offer a good relation between strength and weight. The braces have a diameter of 20 mm with 2 mm wall thickness and provide stability for this truss system. With 290 and 257 mm outer dimensions, TRILOCK E-GL33 is a stable truss system for higher loads and extended durability.Please note: this truss system must never be combined with other systems!This system is mainly designed for …
    236,25
    Nieuw
    ALUTRUSS TRILOCK E-GL33 2000 3-way Cross Beam
    ALUTRUSS TRILOCK E-GL33 2000 3-way Cross Beam
    TRILOCK E-GL33 3-point truss systemTRILOCK E-GL33 is a 3-point truss system made of aluminum. The individual elements are connected via three cones, pivots and pins. TRILOCK E-GL33 is made of EN-AW 6082 T6 (AlMgSi1 T6) alloy for high loads. The advantage of the conical connection system is that the cones completely fit into the main chords so that highest load capacity is guaranteed. The Quick-Lock system enables fast, efficient and highly aesthetic assembly when the truss constructions are frequently assembled and dismantled. The three main chords are made of 50 mm aluminum tube with 2 mm wall thickness and offer a good relation between strength and weight. The braces have a diameter of 20 mm with 2 mm wall thickness and provide stability for this truss system. With 290 and 257 mm outer dimensions, TRILOCK E-GL33 is a stable truss system for higher loads and extended durability.This system is mainly designed for intense use in stage installations, fair installations, event installatio…
    268,75
    Nieuw
    ALUTRUSS DECOLOCK DQ1-250 1-way Cross Beam
    ALUTRUSS DECOLOCK DQ1-250 1-way Cross Beam
    Universal 1-point truss system in lightweight constructionAluminum alloy for a classic high-tech lookDQ1 is particularly suitable as a frame construction for projection foilsFast, efficient and reliable assembly via quick lock conical connectorsAn extensive selection of lengths, circular and corner elements offers maximum flexibilitySpecial designs according to customer specifications on requestTrusspipe: 35 mmAny RAL color available on requestVarious versions availableMade in EuropeFor application areas such as: Shop fitting; theater; Trade fair and shop fitting; installation; stagePackage contents1 x connection setTrusspipe:35 mm x 2 mmWelding technique:TIG-weldingWelding material:AlMg 5Alloy:AlMgSi 0.5Color:Alu colored; any RAL color available on requestDimensions:Length: 25 cmHeight: 3,50 cmWeight:310 g
    37,39

    Klanten-reviews van ALUTRUSS TRILOCK E-GL33 250 3-way Cross Beam

    Er zijn nog geen beoordelingen voor dit productBen jij de eerste die een review plaatst?

    Meer over ALUTRUSS TRILOCK E-GL33 250 3-way Cross Beam

    Productomschrijving



    3-point truss system

    • Strong EN-AW 6082 alloy for high loads
    • Low weight
    • Distance center - center: horizontal 240 mm, vertical 207 mm
    • Easy installation
    • Trusspipe: 50 mm
    • Made in Europe
    • For application areas such as: Theater; Trade fair and shop fitting; clubs/dancing school

    Package contents

    • 1 x connection set


    Setup:Easy installation
    Trusspipe:50 mm x 2 mm
    Welding technique:TIG-welding
    Welding material:AlMg 5
    Alloy:AIMgSi1 T6
    Color:Alu colored
    Strut diameter x thickness:20 x 2mm
    Dimensions:Length: 25 cm
    Width: 29 cm
    Height: 25,70 cm
    Weight:2,65 kg

    Productinformatie

      Productspecificaties

      Artikelnummer(s)
      EAN
      4026397668322
