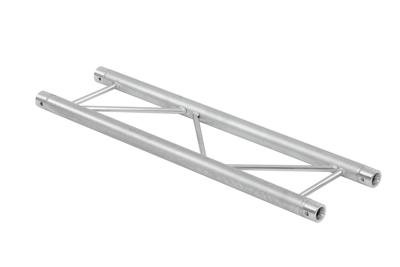

ALUTRUSS BILOCK E-GL22 4000 2-way Cross Beam

ALUTRUSS BILOCK E-GL22 4000 2-way Cross Beam

0
BILOCK E-GL22 2-point truss systemBILOCK E-GL22 is a 2-point truss system made of aluminum. The individual elements are connected via two cones, pivots and pins.The advantage of the conical connection system is that the cones completely fit into the main chords so that highest load capacity is guaranteed. The Quick-Lock system enables fast, efficie...

Snel naar

  • Prijzen

    PrijzenProductomschrijvingProductspecificaties

    Alle aanbiedingen van dit product

    Verkoper
    Bezorging
    Prijs
    ST-shop.nl logo
    ST-shop.nl
    1-3 dagen
    niet bekend
    €293,75

    Anderen bekeken ook

    Klanten-reviews van ALUTRUSS BILOCK E-GL22 4000 2-way Cross Beam

    Er zijn nog geen beoordelingen voor dit productBen jij de eerste die een review plaatst?

    Meer over ALUTRUSS BILOCK E-GL22 4000 2-way Cross Beam

    Productomschrijving

    BILOCK E-GL22 2-point truss systemBILOCK E-GL22 is a 2-point truss system made of aluminum. The individual elements are connected via two cones, pivots and pins.The advantage of the conical connection system is that the cones completely fit into the main chords so that highest load capacity is guaranteed. The Quick-Lock system enables fast, efficient and highly aesthetic assembly when the truss constructions are frequently assembled and dismantled.The two main chords are made of 50 mm aluminum tube with 2 mm wall thickness and offer a good relation between strength and weight. The braces have a diameter of 20 mm with 2 mm wall thickness and leave enough space for installing couplers, hooks and clamps.With 290 mm outer dimensions, BILOCK E-GL22 is a stable truss system for higher loads and extended durability. This system is mainly designed for intense use in stage installations, fair installations, event installations but also for permanent installations in discotheques and theatres.Its polished surface makes this universal system a real eyecatcher. Due to its wide range of standard system lengths, corners, circles and accessory, this system is highly versatile and offers unlimited design possibilities.The documentation of this truss system is closely related to the Codes of Practice SQ P1 - Truss Systems published by the VPLT/PLASA. The load table as calculation base can be downloaded from the Internet before buying the product!

    2-point truss system

    • Low weight
    • Easy to assemble
    • Trusspipe: 50 mm
    • Made in Europe
    • For application areas such as: Theater; Trade fair and shop fitting; clubs/dancing school
    • For further information about this product, please refer to the Data Sheet under "Downloads"

    Package contents

    • 1 x connection set


    Setup:Easy to assemble
    Trusspipe:50 mm x 2 mm
    Welding technique:TIG-welding
    Welding material:AlMg 5
    Alloy:AISi1MgMn
    Color:Alu colored
    Strut diameter x thickness:20 x 2mm
    Dimensions:Length: 4 m
    Width: 29 cm
    Height: 5 cm
    Weight:8,90 kg

    Productinformatie

      Productspecificaties

      Artikelnummer(s)
      EAN
      4026397572698
