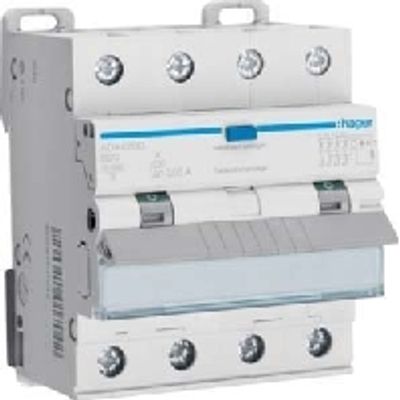

ADX420D - Earth leakage circuit breaker B16/0,03A ADX420D

Meer Hager in Klussen

ADX420D - Earth leakage circuit breaker B16/0,...

EAN: 3250611016977 - manufacturer-number: ADX420D - Earth leakage circuit breaker B16/0,03A Number of poles (total) 4, Number of protected poles 4, Rated voltage 400V, Rated insulation voltage Ui 500V, Rated impulse withstand voltage Uimp 4kV, Rated current 20A, Rated fault current 0,03A, Leakage current type A, Current limiting class 3, Rated shor...

Snel naar

  • Prijzen

    PrijzenProductomschrijvingProductspecificaties

    Aanbiedingen

    Klanten-reviews van ADX420D - Earth leakage circuit breaker B16/0,03A ADX420D

    0

    0 Klanten-reviews

    0
    0
    0
    0
    0

    Meer over ADX420D - Earth leakage circuit breaker B16/0,03A ADX420D

    Productomschrijving

    EAN: 3250611016977 - manufacturer-number: ADX420D - Earth leakage circuit breaker B16/0,03A Number of poles (total) 4, Number of protected poles 4, Rated voltage 400V, Rated insulation voltage Ui 500V, Rated impulse withstand voltage Uimp 4kV, Rated current 20A, Rated fault current 0,03A, Leakage current type A, Current limiting class 3, Rated short-circuit breaking capacity Icn acc. EN 61009-1 10kA, Surge current capacity 3kA, Voltage type AC, Frequency 50 Hz, Release characteristic B, Over voltage category 3, Pollution degree 2, Width in number of modular spacings 4, Built-in depth 70mm, Suitable for flush-mounted installation, Degree of protection (IP) IP20 - ADX420D

    Productspecificaties

    Artikelnummer(s)
    EAN
    3250611016977
    Brand
    Hager
