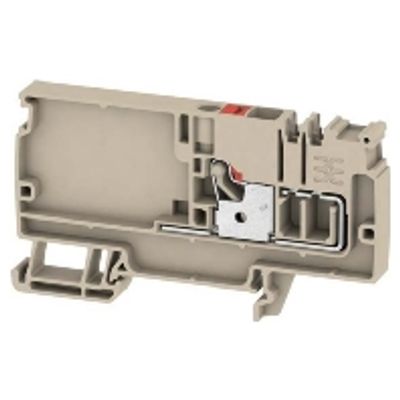

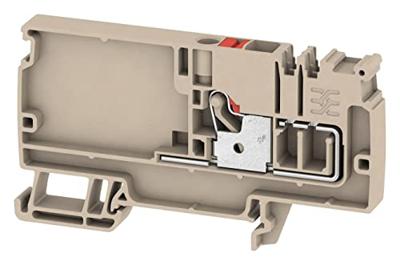

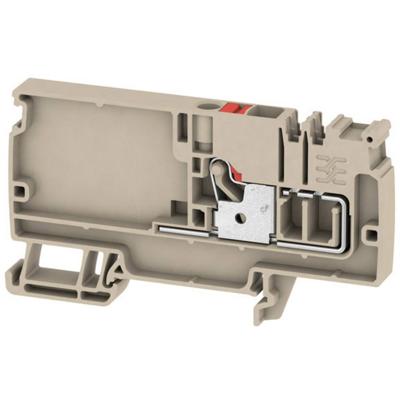

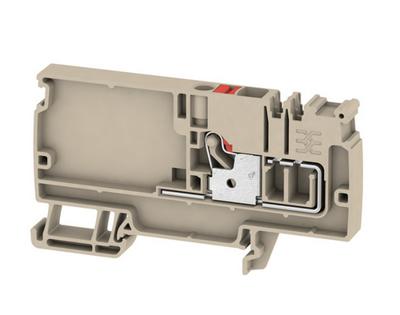

Name: AAP11 6 LO RD (20 Stück) - Feed-through terminal block 8,1mm 41A AAP11 6 LO RD
Brand: Weidmüller
SKU: 0d5f4ac96c5ecbc80bd7e8d9178fb6cb
Price: 36.17 EUR
Availability: InStock

AAP11 6 LO BL (20 Stück) - Feed-through terminal block 8,1mm 41A AAP11 6 LO BL

EAN: 4050118373004 - manufacturer-number: AAP116LOBL - Connectable conductor cross section fine-strand without cable end sleeve 0,5 ... 6mm², Connectable conductor cross section fine-strand with cable end sleeve 0,5 ... 6mm², Connectable conductor cross section solid-core 0,5 ... 6mm², Connectable conductor cross section multi-wired 0,5 ... 6mm², Rated current In 41A, Rated voltage 500V, Type of electrical connection 1 Plug-in connection, Connection position Above, Number of levels 1, Number of clamp positions per level 1, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Operation temperature -60 ... 130°C, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 8,1mm, Height at lowest possible mounting height 47mm, Length 85,5mm, Closing plate required, Colour Beige - AAP11 6 LO BL

36,17

A2C 6 (50 Stück) - Feed-through terminal block 8,1mm 41A A2C 6

EAN: 4050118377064 - manufacturer-number: A2C6 - Feed-through terminal block 8,1mm 41A Connectable conductor cross section fine-strand without cable end sleeve 0,5 ... 6mm², Connectable conductor cross section fine-strand with cable end sleeve 0,5 ... 6mm², Connectable conductor cross section solid-core 0,5 ... 6mm², Connectable conductor cross section multi-wired 0,5 ... 6mm², Rated current In 41A, Rated voltage 800V, Type of electrical connection 1 Plug-in connection, Connection position Above, Number of levels 1, Number of clamp positions per level 2, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Operation temperature -60 ... 130°C, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 8,1mm, Height at lowest possible mounting height 45,5mm, Length 66,5mm, Closing plate required, Colour Beige - A2C 6

60,76

PT 6 RD (50 Stück) - Feed-through terminal block 8,2mm 41A PT 6 RD

EAN: 4046356879859 - manufacturer-number: PT6RD - Feed-through terminal block 8,2mm 41A Connectable conductor cross section fine-strand without cable end sleeve 0,5 ... 6mm², Connectable conductor cross section fine-strand with cable end sleeve 0,5 ... 6mm², Connectable conductor cross section solid-core 0,5 ... 6mm², Connectable conductor cross section multi-wired 0,5 ... 6mm², Rated current In 41A, Rated voltage 1000V, Type of electrical connection 1 Spring clamp connection, Type of electrical connection 2 Spring clamp connection, Number of levels 1, Number of clamp positions per level 2, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 8,2mm, Height at lowest possible mounting height 42,2mm, Length 57,7mm, Explosion-tested version Ex e, Closing plate required, Colour Red - PT 6 RD

56,68

PT 6 - Feed-through terminal block 8,2mm 41A PT 6

EAN: 4046356494656 - manufacturer-number: PT6 - Feed-through terminal block 8,2mm 41A Connectable conductor cross section fine-strand without cable end sleeve 0,5 ... 6mm², Connectable conductor cross section fine-strand with cable end sleeve 0,5 ... 6mm², Connectable conductor cross section solid-core 0,5 ... 6mm², Connectable conductor cross section multi-wired 0,5 ... 6mm², Rated current In 41A, Rated voltage 1000V, Type of electrical connection 1 Spring clamp connection, Type of electrical connection 2 Spring clamp connection, Connection position Above, Number of levels 1, Number of clamp positions per level 2, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 8,2mm, Height at lowest possible mounting height 42,2mm, Length 57,7mm, Explosion-tested version Ex e, Closing plate required, Colour Grey - PT 6

1,14

PT 6 BK (50 Stück) - Feed-through terminal block 8,2mm 41A PT 6 BK

EAN: 4046356879842 - manufacturer-number: PT6BK - Feed-through terminal block 8,2mm 41A Connectable conductor cross section fine-strand without cable end sleeve 0,5 ... 6mm², Connectable conductor cross section fine-strand with cable end sleeve 0,5 ... 6mm², Connectable conductor cross section solid-core 0,5 ... 6mm², Connectable conductor cross section multi-wired 0,5 ... 6mm², Rated current In 41A, Rated voltage 1000V, Type of electrical connection 1 Spring clamp connection, Type of electrical connection 2 Spring clamp connection, Number of levels 1, Number of clamp positions per level 2, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 8,2mm, Height at lowest possible mounting height 42,2mm, Length 57,7mm, Explosion-tested version Ex e, Closing plate required, Colour Black - PT 6 BK

56,68

PT 6-QUATTRO (50 Stück) - Feed-through terminal block 8,2mm 41A PT 6-QUATTRO

EAN: 4046356538121 - manufacturer-number: PT6-QUATTRO - Feed-through terminal block 8,2mm 41A Connectable conductor cross section fine-strand without cable end sleeve 0,5 ... 6mm², Connectable conductor cross section fine-strand with cable end sleeve 0,5 ... 6mm², Connectable conductor cross section solid-core 0,5 ... 6mm², Connectable conductor cross section multi-wired 0,5 ... 6mm², Rated current In 41A, Rated voltage 1000V, Type of electrical connection 1 Spring clamp connection, Type of electrical connection 2 Spring clamp connection, Connection position Above, Number of levels 1, Number of clamp positions per level 4, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 8,2mm, Height at lowest possible mounting height 42,2mm, Length 90,5mm, Explosion-tested version Ex e, Closing plate required, Colour Grey - PT 6-QUATTRO

111,06

PT 6-TWIN (50 Stück) - Feed-through terminal block 8,2mm 41A PT 6-TWIN

EAN: 4046356495950 - manufacturer-number: PT6-TWIN - Feed-through terminal block 8,2mm 41A Connectable conductor cross section fine-strand without cable end sleeve 0,5 ... 6mm², Connectable conductor cross section fine-strand with cable end sleeve 0,5 ... 6mm², Connectable conductor cross section solid-core 0,5 ... 6mm², Connectable conductor cross section multi-wired 0,5 ... 6mm², Rated current In 41A, Rated voltage 1000V, Type of electrical connection 1 Spring clamp connection, Type of electrical connection 2 Spring clamp connection, Connection position Above, Number of levels 1, Number of clamp positions per level 3, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Operation temperature -60 ... 130°C, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 8,2mm, Height at lowest possible mounting height 42,2mm, Length 74,2mm, Explosion-tested version Ex e, Closing plate required, Colour Grey - PT 6-TWIN

82,48

PT 6 BU - Feed-through terminal block 8,2mm 41A PT 6 BU

EAN: 4046356494663 - manufacturer-number: PT6BU - Feed-through terminal block 8,2mm 41A Connectable conductor cross section fine-strand without cable end sleeve 0,5 ... 6mm², Connectable conductor cross section fine-strand with cable end sleeve 0,5 ... 6mm², Connectable conductor cross section solid-core 0,5 ... 6mm², Connectable conductor cross section multi-wired 0,5 ... 6mm², Rated current In 41A, Rated voltage 1000V, Type of electrical connection 1 Spring clamp connection, Type of electrical connection 2 Spring clamp connection, Connection position Above, Number of levels 1, Number of clamp positions per level 2, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 8,2mm, Height at lowest possible mounting height 42,2mm, Length 57,7mm, Explosion-tested version Ex e, Closing plate required, Colour Blue - PT 6 BU

1,16

PT 6-TWIN BU (50 Stück) - Feed-through terminal block 8,2mm 41A PT 6-TWIN BU

EAN: 4046356495967 - manufacturer-number: PT6-TWINBU - Feed-through terminal block 8,2mm 41A Connectable conductor cross section fine-strand without cable end sleeve 0,5 ... 6mm², Connectable conductor cross section fine-strand with cable end sleeve 0,5 ... 6mm², Connectable conductor cross section solid-core 0,5 ... 6mm², Connectable conductor cross section multi-wired 0,5 ... 6mm², Rated current In 41A, Rated voltage 1000V, Type of electrical connection 1 Spring clamp connection, Type of electrical connection 2 Spring clamp connection, Connection position Above, Number of levels 1, Number of clamp positions per level 3, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Operation temperature -60 ... 130°C, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 8,2mm, Height at lowest possible mounting height 42,2mm, Length 74,2mm, Explosion-tested version Ex e, Closing plate required, Colour Grey - PT 6-TWIN BU

83,90

ZDU 6-2/3AN - Feed-through terminal block 8,1mm 41A ZDU 6-2/3AN

EAN: 4032248143146 - manufacturer-number: ZDU6-2/3AN - Feed-through terminal block 8,1mm 41A Connectable conductor cross section fine-strand without cable end sleeve 0,5 ... 10mm², Connectable conductor cross section fine-strand with cable end sleeve 0,5 ... 6mm², Connectable conductor cross section solid-core 0,5 ... 10mm², Rated current In 41A, Rated voltage 800V, Type of electrical connection 1 Spring clamp connection, Type of electrical connection 2 Spring clamp connection, Connection position Inclined, Number of levels 1, Number of clamp positions per level 3, Mounting method DIN rail (top hat rail) 35 mm, Material insulation body Thermoplastic, Operation temperature -50 ... 120°C, Inflammability class of insulation material acc. with UL94 V0, Width/grid dimension 8,1mm, Height at lowest possible mounting height 49,5mm, Length 68mm, Explosion-tested version Ex e, Closing plate required, Colour Beige - ZDU 6-2/3AN

2,23
